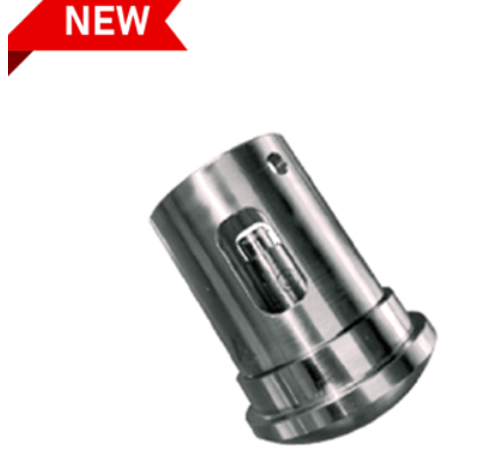

Hammer Union Pressure Transducer

Intrinsically Safe Pressure Transmitter and Transducer

The Hammer Union Pressure Transmitter and Transducer is designed to deliver accurate pressure measurements up to 20,000 psi (1500 bar) and operate within a temperature range of -40 to 176°F (-40 to 80°C). Built to withstand the demanding conditions of hazardous environments, the Pressure Transmitter is intrinsically safe and certified with ATEX and IECEx ratings, ensuring reliable performance in industries such as oil & gas, chemical, and other challenging industrial applications. With its rugged construction and resistance to shock and vibration, the Hammer Union Pressure Transmitter and Transducer provides exceptional accuracy and durability, making it an ideal choice for critical pressure monitoring in oil & gas production & drilling, mud pumps, wellhead monitoring, and more.

Features

• Reliable and accurate pressure measurement

• Accuracy (non-linearity, hysteresis and repeatability) ≤ ± 0.25 % of span

• Pressure ranges up to 20,000 psi (1,500 BAR)

• Working temperature -40° to 80°C

• Supply voltage 11 to 28VDC

• Output: 4 to 20mA (2 wires connection)

• Process Connection Hammer Union 1502

• Designed for harsh environments

Applications

• Mud Pumps/mud logging

• Mud Pulse Detection

• Choke & Kill

• Fracking

• Cementing

•  BOP

•  Acidizing

• Coiled Tubing

------------------------
