INSTALLATION BASE (Tension clamp) R6S-BS

Some details are not shown. Please refer to specification sheets for all information.

R6S-BS

Remote I/O R6 Series

INSTALLATION BASE
(Tension clamp)

Functions & Features
· Installation base dedicated to Remote I/O R6 Series

MODEL: R6S-BS[1][2]

ORDERING INFORMATION
• Code number: R6S-BS[1][2]
Specify a code from below for each [1] and [2].
  (e.g. R6S-BS8A/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

[1] NUMBER OF SLOTS
8A: 8 I/O slots + Network Module (18 mm wide)
8B: 8 I/O slots + Network Module (36.5 mm wide)
(Selectable only for using with R6-NF1, R6-NC3/W or R6-PSM)
8P: 8 I/O slots for extension

[2] OPTIONS
blank: none
/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q
COATING (For the detail, refer to M-System's web site.)
Only solder side of the PWB is coated.
/C01: Silicone coating
/C02: Polyurethane coating

GENERAL SPECIFICATIONS
Construction: DIN rail or surface mounting
Capacity:　
•R6S-BS8A: I/O / power supply module, 8 slots + network (18 mm wide) module
•R6S-BS8B: I/O / power supply module, 8 slots + network (36.5 mm wide) module
•R6S-BS8P: I/O / power supply module, 8 slots
Housing material: Flame-resistant resin (black)

INSTALLATION
Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Construction: DIN rail or surface mounting
Weight (No remote I/O module mounted)
R6S-BS8A: 80 g (2.8 oz)
R6S-BS8B: 95 g (3.4 oz)
R6S-BS8P: 50 g (1.8 oz)

PERFORMANCE
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 2000 V AC @ 1 minute
(internal power or internal field signal to ground)

STANDARDS & APPROVALS
EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive
  EN 50581

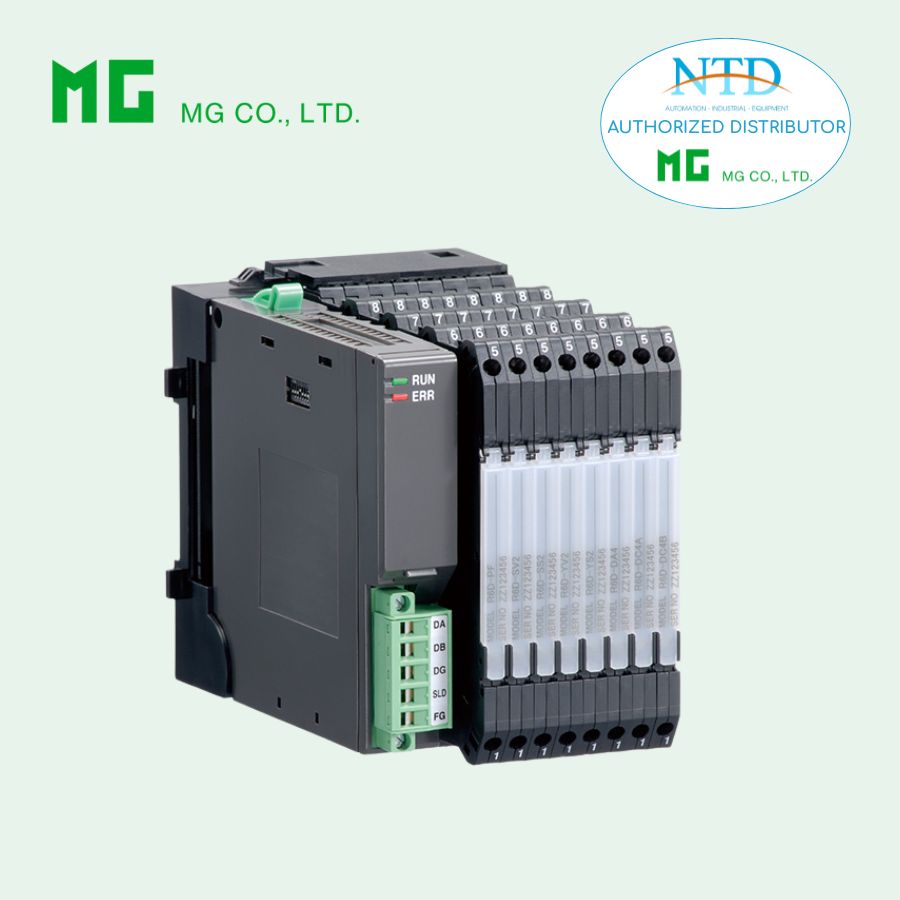

EXTERNAL VIEW
Mount I/O and power supply modules, starting from the left end.
The power supply module could be mounted at any slots, however, installing them at either end is generally recommended.

EXTERNAL DIMENSIONS unit: mm (inch)

MOUNTING REQUIREMENTS unit: mm (inch)
■ MOUNTING DIRECTION
The unit must be mounted on a vertical panel. Mounting in any other angle will cause internal temperature to rise,
may shorten the product’s life expectation or deteriorate its performance.

M-System Co., Ltd.
