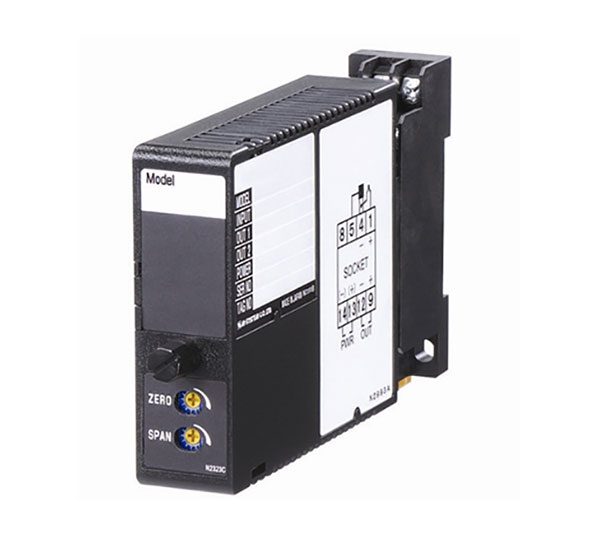

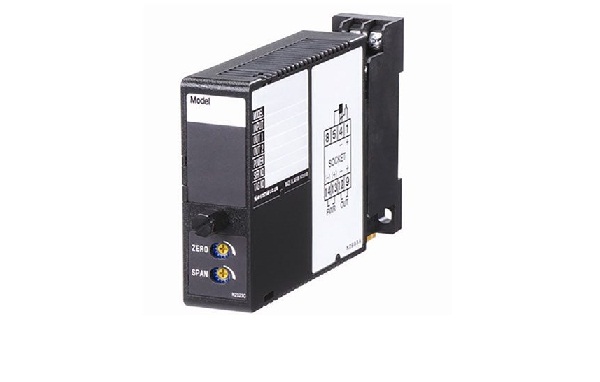

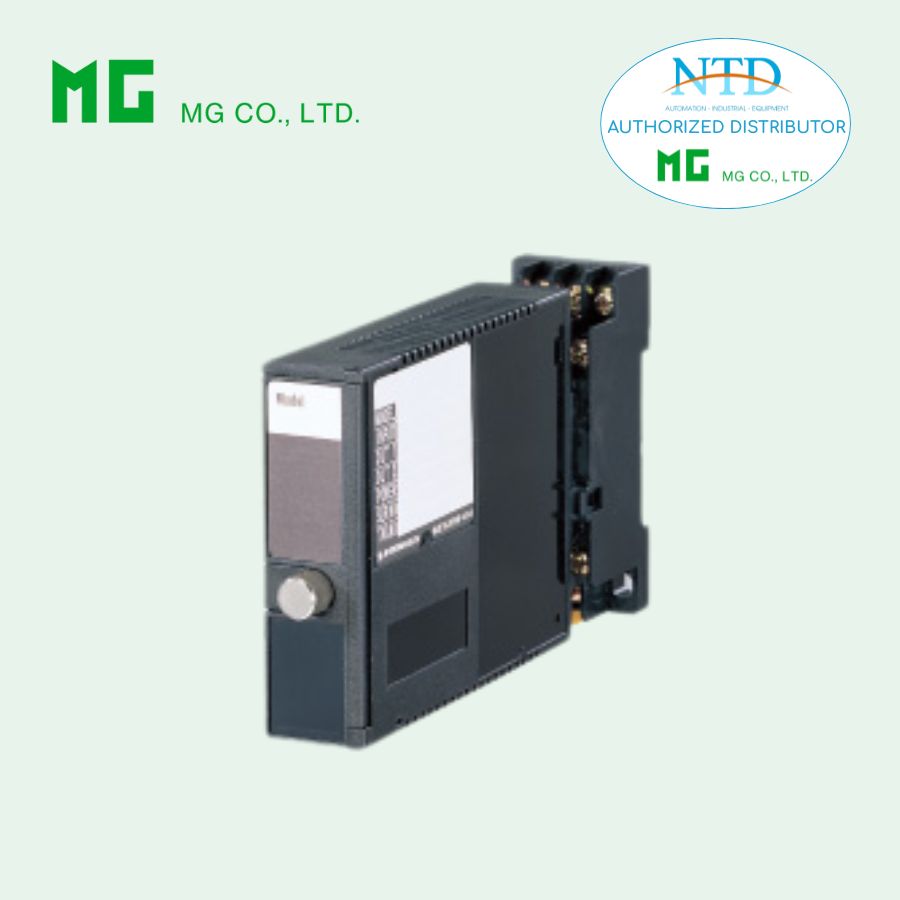

ISOLATOR Series M2YV

ISOLATOR

Model: M2YV

ISOLATOR

Model: M2YV - AA - M

Functions & Features
• Galvanically isolating the input and output signals
• Universal power input
• High-density mounting
Typical Applications
 • Isolation between control room and field instrumentation
 • Eliminating ground loops

MODEL: M2YV–[1][2]–[3][4]

[1] INPUT
Current
A: 4 – 20 mA DC (Input resistance 250 Ω)

[2] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)


[3] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)


[4] OPTIONS
blank: none
/Q: With options (specify the specification)

ISOLATOR M2YV
