ISOLATOR Series W2YV

ISOLATOR

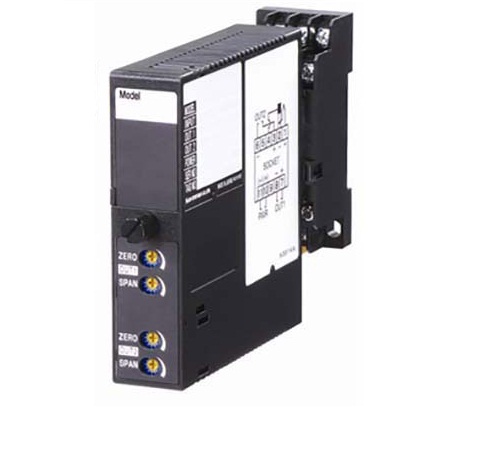

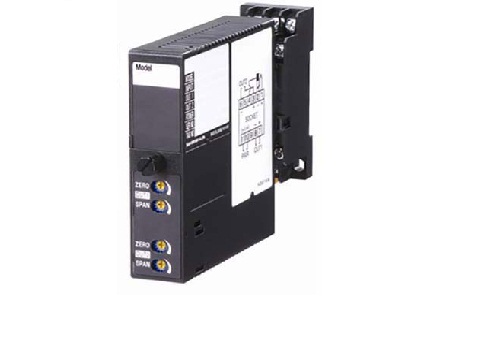

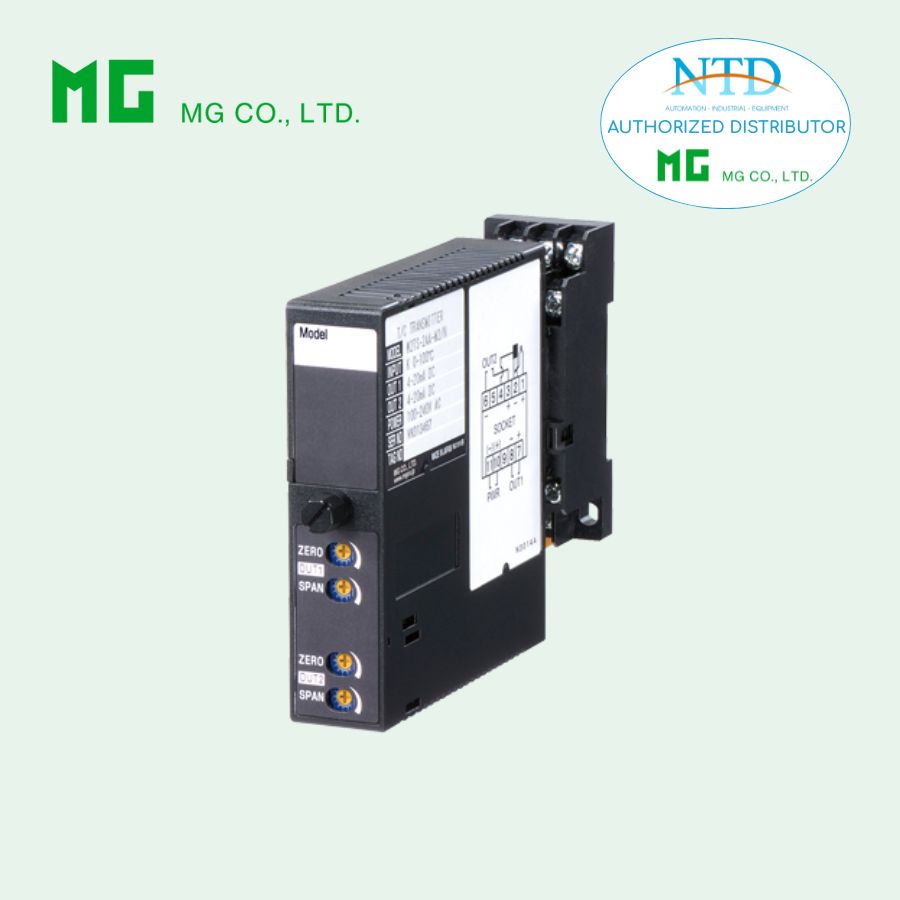

Model: W2YV

ISOLATOR

Model: W2YV - AAA - M

Functions & Features
• Galvanically isolating the input and output signals
• Universal power input
• High-density mounting
Typical Applications
 • Isolation between control room and field instrumentation
 • Eliminating ground loops

MODEL: W2YV–[1][2][3]-[4][5]

[1] INPUT
Current
A: 4 – 20 mA DC (Input resistance 250 Ω)
Voltage
6: 1 – 5 V DC (Input resistance 1 MΩ min.)

[2] OUTPUT 1
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)
Voltage
6: 1 – 5 V DC (Load resistance 5000 Ω min.)

[3] OUTPUT 2
Y: None
Current
A: 4 – 20 mA DC (Load resistance 350 Ω max.)
Voltage
6: 1 – 5 V DC (Load resistance 5000 Ω min.)

[4] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
DC Power
R2: 11 – 27 V DC
(Operational voltage range 11 – 27 V, ripple 10 %p-p max.)

[5] OPTIONS
blank: none
/Q: With options (specify the specification)

ISOLATOR Model: W2YV
