Tower Light Series

WIRELESS LAN TOWER LIGHT

(small size, 60 mm dia., Modbus/TCP, access point, 1 - 5 layers)
Functions & Features
• Lighting, blinking and buzzing available with contact input or PC via Modbus/TCP.
• Contact input status acquisition available through wireless LAN.
• Connection to network with bridge function, in remote I/O  Ethernet type via wireless LAN.
• Wireless LAN access point complied with IEEE802.11b/g/n
• Nondirectional antenna (360°horizontal)
• Station use is available by mode change.

MODEL: IT60SW2-[1][2][3][4][5][6]D2-R[7]

ORDERING INFORMATION

• Code number: IT60SW2-[1][2][3][4][5][6]D2-R[7]
Specify a code from below for each of [1] through [7].
  (e.g. IT60SW2-5RYGBWD2-R/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

[1] LAMP LAYERS

1: 1 layer
2: 2 layers
3: 3 layers
4: 4 layers
5: 5 layers

[2] LAMP 1 COLOR

(1st layer from the top)
R: Red
Y: Amber
G: Green
B: Blue
W: White

[3] LAMP 2 COLOR

(2nd layer from the top)
R: Red
Y: Amber
G: Green
B: Blue
W: White
N: None (not available when Lamp Layers selected are 2 - 5)

[4] LAMP 3 COLOR

(3rd layer from the top)
R: Red
Y: Amber
G: Green
B: Blue
W: White
N: None (not available when Lamp Layers selected are 3 - 5)

[5] LAMP 4 COLOR

(4th layer from the top)
R: Red
Y: Amber
G: Green
B: Blue
W: White
N: None (not available when Lamp Layers selected are 4 - 5)

[6] LAMP 5 COLOR

R: Red
Y: Amber
G: Green
B: Blue
W: White
N: None (not available when Lamp Layers selected are 5)
* The selection of the same color for more than one layer is not available.
* Select "None" option for the layers other than the selected.

MOUNTING

D: Direct mounting

DESIGN TYPE

2: Type 2
(refer to outline dimensions)

POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

COUNTRY

blank: Japan, EU

[7] OPTIONS

blank: none
/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating

RELATED PRODUCTS

• LAN cable (model: ITCA)
• Mounting Pole (model: ITPL, ITB, ITP, ITW and ITS)
• Mounting Adapter (model: ITAD1, ITAM, ITAR and ITAW)
• PC configurator software (model: ITCFG)
Functions are configurable using the PC Configurator Software.
Downloadable at our web site.

PACKAGE INCLUDES...

• Ferrite core (model: ZCAT 2132-1130)(TDK): 1 pce.

GENERAL SPECIFICATIONS

Degree of protection: IP 65, vertical mounting only (bottom connectors excluded)
Connection
  Power: UL1007 AWG20
  Input:  UL1007 AWG22
  Ethernet: RJ-45 Modular Jack
Housing material: Flame-resistant resin
Lens: Flame-resistant resin (transparent)
Isolation: Discrete input or power input to network
DIP SW Setting: Frequency of lamp blinking and buzzing discontinuance, buzzing volume level, output at connection failed and IP address (refer to the instruction manual)
Lamp: Red, amber, green, blue and white LEDs
on/blinking (approx. 2 Hz, 10 Hz)
Status indicator LEDs: Power, Run
(Refer to the insruction manual)
Buzzing: Approx. 3.3 kHz
  Interval: continuous/intermittent (approx. 2 Hz, 10 Hz)

COMMUNICATION

■ Common spec.
Modbus protocol
Protocol: Modbus/TCP
Data: RTU (Binary)
Port No.: 502
Max. number of socket connections: 10
DHCP protocl: DHCP server
IP address: 192.168.0.1 (factory setting);
Selectable with PC Configurator Software
(model: ITCFG)
■ Ethernet
Communication Standard: IEEE 802.3u
Transmission: 10BASE-T, 100BASE-TX
Baud rate: 10/100 Mbps (Auto Negotiation function)
Transmission media: 10BASE-T (STP, Category 5) 100BASE-TX (STP, Category 5e)
Max. length of fieldbus segment: 100 meters
IP address: 192.168.0.1 (factory setting);
Selectable with PC Configurator Software
Ethernet indicator LED: Link, Link100, COL
■ Wireless LAN
Communication Standard: IEEE 802.11b/g/n
Frequency range: 2400 - 2483.5 MHz (ch1 - ch13)
Max. transmision distance (optical): Approx. 50m (depends on setting)
Access mode: infrastructure
Security: WEP 64bit/128bit, WPA (TKIP, AES), WPA2 (TKIP, AES)
Wireless LAN indicator: WLAN1
Number of stations: 5

INPUT SPECIFICATIONS

■ Discrete Input: Dry contact, open collector NPN
Input resistance: Approx. 4.4 kΩ
Common: Negative common NPN
ON level: ≤ 5 V / ≥ 3.5 mA (Input - COM)
OFF level: ≥ 18 V DC / ≤ 1 mA (Input - COM)
Input current: ≤ 5.5 mA per point @ 24 V DC

INSTALLATION

Power consumption
•DC: Approx. 7 W
Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 85 %RH (non-condensing)
Atmosphere: No corrosive gas
Mounting: Direct mounting
Mounting direction: Vertical
Weight: 750 g (1.65 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @ 1 minute (discrete input or power to network

STANDARDS & APPROVALS

• Built-in module certified under Japanese Radio Law
• EU conformity:
  RE Directive
    EN 300 328 V2.2.2
  RoHS Directive
• EN 301 489-1 V1.9.2
• EN 60950-1

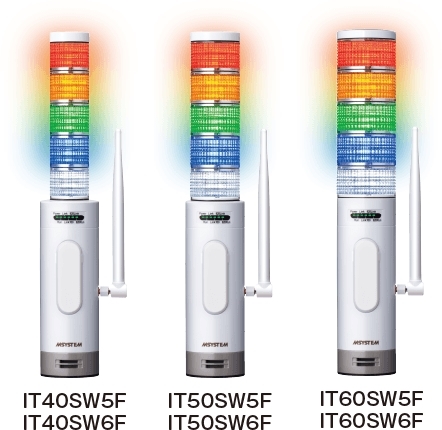

EXTERNAL VIEW

EXTERNAL DIMENSIONS unit: mm

MOUNTING REQUIREMENTS unit: mm

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

SYSTEM CONFIGURATION EXAMPLES
