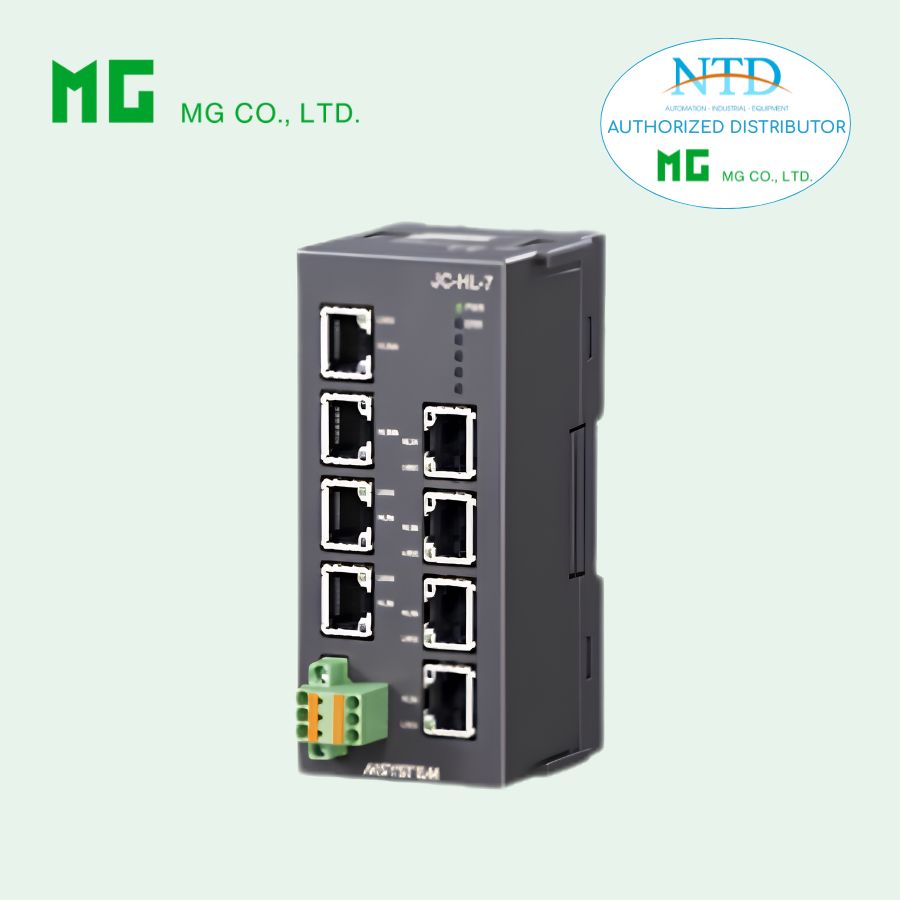

JC-CU HUB MODULE

Liên hệ Còn hàng

ES-9042 Rev.3

JC-CU

Remote I/O JC Series

HUB MODULE

(CUnet use)


MODEL: JC–CU-[1]-1[2]-[3][4]

ORDERING INFORMATION

• Code number: JC-CU-[1]-1[2]-[3][4]
Specify a code from below for each of [1] through [4].
  (e.g. JC-CU-7-12-R/Q)
• Specify the specification for option code /Q
  (e.g. /SET)

[1] I/O TYPE

3: 3 port (trunk 1 port, feeder 2 port)
7: 7 port (trunk 1 port, feeder 6 port)

TERMINAL BLOCK

1: Tension clamp terminal block for power supply
   RJ-45 Modular jack for communication

[2] COMMUNICATION CONNECTOR PIN ASSIGNMENT

1: 3, 4 pair wiring
2: 4, 5 pair wiring
  (Ethernet LAN cable pin assignment)

[3] POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
R5: 16 - 32 V DC
(Operational voltage range 15 - 33 V DC, ripple 10 %p-p max.)

[4] OPTIONS

Other Options
blank: none
/Q: Option other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q

EX-FACTORY SETTING
/SET: Preset according to the Ordering Information Sheet
 (No. ESU-9042)

FUNCTIONS & FEATURES

The HUB Module for CUnet (model: JC-CU) extends total length of network cable and branch cable of CUnet. Total max. length is 900 m when transfer rate is 3 Mbps. In order to connect the JC-CU, the unit configuring CUnet must support HUB module.

GENERAL SPECIFICATIONS

Number of port:
JC-CU-3: Trunk 1 port, feeder 2 port
JC-CU-7: Trunk 1 port, feeder 6 port
Max. number of inserted HUBs: 2
(Depending on specification of CUnet I/O unit)
Connectable devices: The products conforming to CUnet
Connection
  Network: RJ-45 Modular Jack
  Power input: Separable tension clamp terminal
Power on LED: PWR (green) turns on while the power is supplied.

CUnet COMMUNICATION

Communication mode: half-duplex
Network cable
• Shield cable
ZHY262PS (Shinko Seisen Industry Co., Ltd.)
ZHT262PS (Shinko Seisen Industry Co., Ltd.)
• Dual-shield cable
ZHY262PBA (Shinko Seisen Industry Co., Ltd.)
Transmission distance / Transfer rate:
Refer to the table below (Selectable with
DIP switch. Factory default: 12 Mbps)
Terminating resistor:
Trunk built-in (Selectable with DIP switch. Factory default: disable)
Feeder built-in
Status indicator LEDs: ERR, LNK
(Refer to the instruction manual for details)

INSTALLATION

Rated current for power supply connector: 8A
Power consumtpion:
  JC-CU-3: Approx. 0.9 W
  JC-CU-7: Approx. 1.2 W
Operating temperature: -10 to +55°C
Operating humidity: 10 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Surface or DIN rail
Weight
  JC-CU-3: 150 g (0.33 lb)
  JC-CU-7: 160 g (0.35 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC
JC-CU-3 (CU0A or CU0B to CU1 or CU2 or FE to power)
JC-CU-7 (CU0A or CU0B to CU1 or CU2 or CU3 or CU4 or CU5 or CU6 or FE to power)
Dielectric strength: 1500 V AC @ 1 minute
JC-CU-3 (CU0A or CU0B to CU1 or CU2 or FE to power)
JC-CU-7 (CU0A or CU0B to CU1 or CU2 or CU3 or CU4 or CU5 or CU6 or FE to power)

STANDARDS & APPROVALS

Refer to the manuals to comply with the standards.
EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive

EXTERNAL VIEW

CONNECTION DIAGRAMS

DIMENSIONS unit: mm (inch)

MOUNTING REQUIREMENTS unit: mm [inch]

SCHEMATIC CIRCUITRY

Note: In order to improve EMC performance, bond the FE terminal to ground.
Caution: FE terminal is NOT a protective conductor terminal.

SYSTEM CONFIGURATION EXAMPLES

System configurration example of Number of inserted HUBs: 2 is shown below.
The number of inserted HUBs is determined by the route, where max. number of HUB is gone through, out of all route.
When HUB module is used, the frame option must be set in any CUnet I/O module connected to the network. Refer to the instruction manual of your CUnet I/O module for the detailed settings.
