LOW FREQUENCY TRANSMITTER Series W2SP

LOW FREQUENCY TRANSMITTER

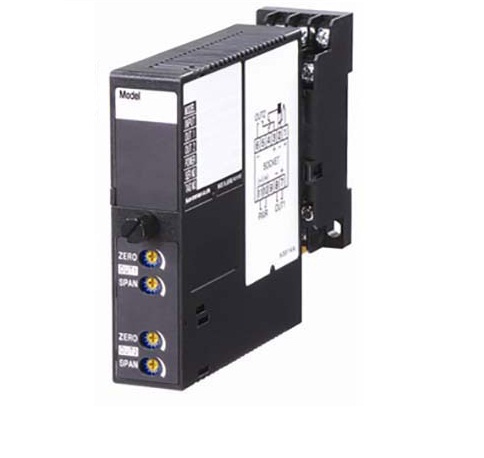

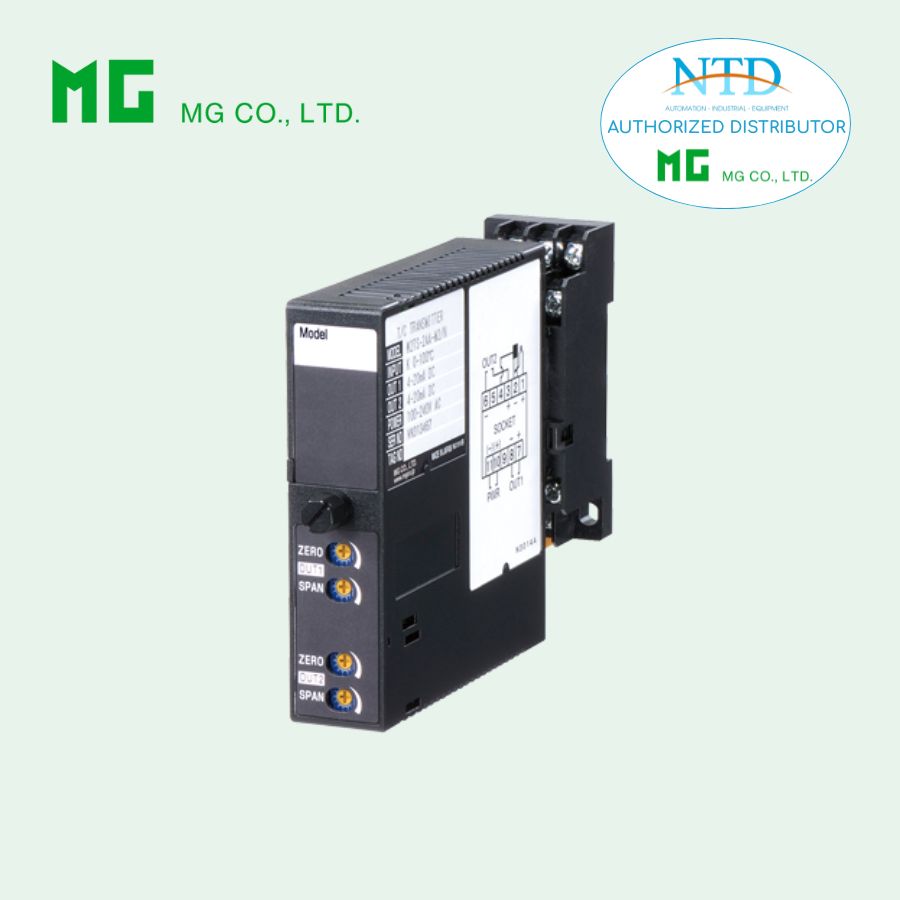

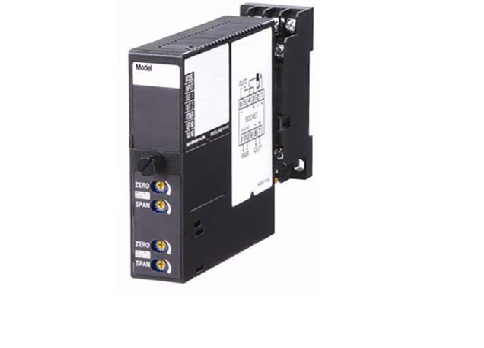

Model: W2SP

LOW FREQUENCY TRANSMITTER

Model: W2SP - 1AA - M2

Functions & Features
• Converts the output from a pulse-type transducer
into a standard process signal
Typical Applications
• Positive displacement flowmeters, turbine flowmeters and
vortex flowmeters
• Proximity switches

MODEL: W2SP–[1][2][3]-[4][5]

[1] INPUT
1: Dry contact
2: Voltage pulse

[3] OUTPUT 2
Y: None
Current
A: 4 – 20 mA DC (Load resistance 350 Ω max.)
B: 2 – 10 mA DC (Load resistance 700 Ω max.)

[2] OUTPUT 1
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[4] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(90 – 264 V for UL)

[5] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none

LOW FREQUENCY TRANSMITTER Model: W2SP
