M6NSN   INPUT LOOP POWERED ISOLATOR


Functions & Features
• 7.5-mm wide ultra-slim design
• Low profile allows the M6N module mounted in a 120-mm deep panel
• Loop-powered design eliminates output loop power supply
• Two isolators housed in one enclosure
• High-density mounting


MODEL: M6NSN–[1]DD[2]

ORDERING INFORMATION
• Code number: M6NSN-[1]DD[2]
  Specify a code from below for each [1] and [2].
  (e.g. M6NSN-2DD/UL/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

[1] NO. OF CHANNELS
1: 1 channel
2: 2 channels

INPUT
Current
D: 0 – 20 mA DC (4 – 20 mA DC)

OUTPUT
Current
D: 0 – 20 mA DC (4 – 20 mA DC)

[2] OPTIONS (multiple selections)
Standards & Approvals
blank: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q
COATING (For the detail, refer to M-System's web site.)
/C01: Silicone coating
/C02: Polyurethane coating

GENERAL SPECIFICATIONS
Connection: M3 screw terminal (torque 0.5 N·m)
Recommended solderless terminal: Max. 5.8 mm (0.23”)
wide; Ones with insulation sleeve do not fit.
Applicable wire size: 0.2 – 2.5 mm2
Housing material: Flame-resistant resin (black)
Isolation: Input to output; between channels
Span adjustments: ±0.5 % (front)

INPUT & OUTPUT
Equivalent input impedance: 250 Ω plus load resistance
with 20 mA input
Operational range: 0.05 – 40 mA DC (Accuracy is assured
within 0.05 – 22 mA)
Minimum operating current: 0.05 mA
Load resistance: 0 – 600 Ω

INSTALLATION
Operating temperature: -20 to +55°C (-4 to +131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Mounting: Installation Base (model: M6NBS) or DIN rail
Weight: 60 g (2.1 oz)

PERFORMANCE in percentage of span
Accuracy: ±0.1 %
Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)
Response time: Approx. 20 msec. (0 – 90 %)
Load effect: (factory-calibrated with 250 Ω load)
0.004%/Ω (0 – 600 Ω)
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength:
1500 V AC @1 minute (input to output)
2000 V AC @1 minute (between channels)
2000 V AC @1 minute (input or output to ground)

STANDARDS & APPROVALS
EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive
  EN 50581
Approval:
  UL/C-UL nonincendive Class I, Division 2,
  Groups A, B, C, and D hazardous locations
  (ANSI/ISA-12.12.01, CAN/CSA-C22.2 No.213)
  UL/C-UL general safety requirements
  (UL 61010-1, CAN/CSA-C22.2 No.61010-1)

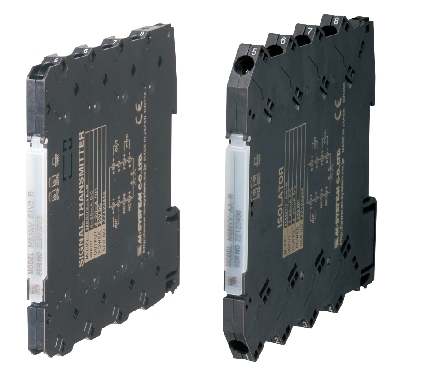

EXTERNAL VIEW

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
