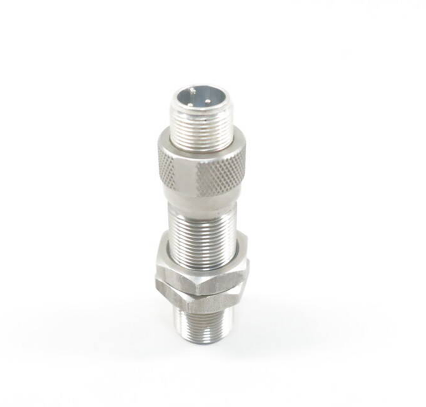

Magnetic Pickup M920

Magnetic Pickup M920

Multiple Thread Sizes and Lengths Speed Sensor

Active (Powered)- Hazardous Area Mag PickupMagnetic Pickup M920

Description

This hall-effect sensor is ATEX and IECEx approved for use in hazardous areas: Ex mb (Zone 1, 2) and Ex ia (Zone 0, 1, 2). It is designed to sense ferrous material (gear teeth, hole, pin, etc.) for speed measurement down to zero-speed. The sensor outputs are TTL and Vin-based and are compatible with most PLC input cards. M920 has multiple thread sizes of UNF2A and M (metric) type, and thread lengths from 1.875” to 6”.

Some outstanding product lines

 (Một số dòng sản phẩm nổi bật)

 1. Dynalco M202
 • Thiết kế nhỏ gọn, chịu nhiệt độ cao.
 • Khoảng cách đo rộng, lý tưởng cho các ứng dụng công nghiệp.
 2. Dynalco M213  Độ nhạy cao, có thể phát hiện tốc độ thấp với tín hiệu đầu ra rõ ràng.
 • Phù hợp cho các ứng dụng yêu cầu độ chính xác cao.
 3. Dynalco M137A
 • Chịu được môi trường khắc nghiệt, lý tưởng cho ngành dầu khí và hàng hải.
4. Active (Powered) Magnetic Pickups
Ordinary Area/-strong/-heart:>:o:-((:-h TTL Output Source Tracking
M928 - 5/8-18 x 2.5” - 3 Pin
M928-24 - 5/8-18 x 2.5” - 3 Pin
Zero Speed Hall-Effect Sensors
M806 - 5/8-18 x 4.5” - 3 Pin
M951 - 5/8-18 x 4.5” - 3 Pin
M919-3-25 - 5/8-18 x 2.5” - 3 Pin
M919-3-25 - 5/8-18 x 2.5” - 3 Pin
M919-3-45 - 5/8-18 x 4.5” - 3 Pin
5. Hazardous Area
Zero Speed Hall-Effect Sensors
M920 Series
Passive (Variable Reluctance) Magnetic Pickups
Ordinary Area
Standard Sensitivity (min. Speed > 500 RPM)
M101 - 5/8-18 x 1.125” - 2 Pin
M101-6 - 5/8-18 x 6” - 2 Pin
M104-6 - 3/4-20 x 1.875”- 30” Leads
M107 - 5/8-18 x 1.125” - 2 Pin - Power Source
M131 - 5/8-18 x 4” - 2 Pin
M131-6 - 5/8-18 x 6” - 2 Pin
M134-6 - 5/8-18 x 6” - 2 Pin
M137 - 3/8-24 x 1.250” - 6” Leads - Miniature, Gear <2”
M143 - 10-32 x 0.875” - 14” Leads - Miniature, Gear <2”
M151 - 5/8-18 x 2.5” - 2 Pin
M183-6-N - No Header, #20, 12” Leads
M189 - 5/8-18 x 2.5” - 2 Pin
M192 - 5/8-18 x 4” - 72” Leads
M304 - 3/4-16 x 4” - 2 Pin
M320 - M18 x 1.5 - 2 Pin
M343 - 3/4-20 x 2” - 6 Pin - Dual output (Bi directional)
M354 - M16 x 1.5 - 17” cable
M356 - 3/4-16 x 2” - 17” cable - Power Source
M367 - M16 x 1.5 - 10” cable
M332 - 5/8-18 x 2.5” - 2 Pin
M193 - 5/8-18 x 4” - 72” Leads
M306 - REF. 800-13041
6. High Sensitivity (min. Speed > 300 RPM)
M102 - 5/8-18 x 1.125” - 2 Pin
M133 - 5/8-18 x 4” - 2 Pin
M138 - 3/8-24 x 1.250” - 6” Leads - Miniature, Gear <2”
M155 - 5/8-18 x 1.125” - 2 Pin - Low Drag, flow meter
M155-6 - 5/8-18 x 6” - 2 Pin - Low Drag, flow meter
M168 - 5/8-18 x 1.75” - 12” Leads
M183 - 5/8-18 x 2.5” - 2 Pin
M183-6 - 5/8-18 x 6” - 2 Pin
M202-6 - 5/8-18 x 6” - 2 Pin
M207 - 3/4-16 x 4” - 2 Pin - Power Source
M233-6 - 5/8-18 x 6” - 2 Pin
M303 - 5/8-18 x 1.125” - 2 Pin
M334 - 3/8-24 x 1.25” - 12’ cable - Miniature, Gear <2”
M321 -
7. Ultra-High Sensitivity (min. Speed < 300 RPM)
M142 - 5/8-18 x 1.125” - 2 Pin
M184 - 5/8-18 x 2.5” - 2 Pin
M185 - 5/8-18 x 4” - 2 Pin
M203-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited
M204-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited
M205-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited
M208 - 3/4-16 x 4” - 2 Pin - Power Source
M281 - M16 x 1.5 - 2 Pin
7. Hazardous Area
Standard Sensitivity (min. Speed > 500 RPM)
M104 - 3/4-20 x 1.875”- 30” Leads
M134 - 5/8-18 x 1.125” - 2 Pin
M135 - 5/8-18 x 4” - 2 Pin
M139 - 3/4-20 x 2” - 2 Pin
M201 - 5/8-18 x 1.125” - 2 Pin
M231 - 5/8-18 x 4” - 2 Pin
High Sensitivity (min. Speed > 300 RPM)
M140 - 3/4-20 x 1.875” -30” Leads
M180 - 5/8-18 x 1.5” - 30” Leads
M202 - 5/8-18 x 1.125” - 2 Pin
M219 - 5/8-18 x 3.5” - 15’ Leads
M233 - 5/8-18 x 4” - 2 Pin
M318 - 3/4-20 x 3.5” - 30” Leads
M319 - 5/8-18 x 3.5”- 30” Leads
M337 - 5/8-18 x 6” - 30” Leads
8. Ultra-High Sensitivity (min. Speed < 300 RPM)/-strong/-heart:>:o:-((:-h M203 - 5/8-18 x 4” - 2 Pin - Zener-Limited
M204 - 5/8-18 x 2.5” - 2 Pin - Zener-Limited M205 - 5/8-18 x 4” - 2 Pin - Zener-Limited
Speed Sensing Accessories
C101 Magnetic Pickup/Speed Sensor 2-Pin Cable/
Connector Assembly
C910 Magnetic Pickup/Speed Sensor 3-Pin Cable/
Connector Assembly
C917 Magnetic Pickup/Speed Sensor 6-Pin Cable/
Connector Assembly
PG-100 Pulser
TT-100 Tach Tape
ISB-101 Intrinsically Safe Barrier (Hazardous Area)

------------------------
