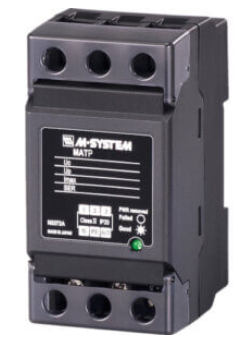

MATP SURGE PROTECTOR FOR PHOTOVOLTAIC SYSTEM

Liên hệ Còn hàng

MATP

Lightning Surge Protectors for
Electronics Equipment M-RESTER

SURGE PROTECTOR FOR PHOTOVOLTAIC SYSTEM

Functions & Features
• Surge protection for photovoltaic array and power conditioner.
•High discharge current capacity 20 kA or 40 kA (8/20 μs)
• Degraded head element is automatically separated from the power lines by the incorporated thermal breaker, and the LED lamp (turns off) and the relay contact alerts the failure status.
• Breakdown of the surge protector remotely detected with the alarm output


MODEL: MATP–600[1][2]

ORDERING INFORMATION

• Code number: MATP-600[1][2]
Specify a code from below for each of [1] and [2].
  (e.g.MATP-600MA)

OPERATIONAL VOLTAGE

600: 600 V DC

[1] MAXIMUM DISCHARGE CURRENT

M: 20kA (8/20 μsec.)
H: 40kA (8/20 μsec.)

[2] ALARM OUTPUT

A: With
Y: Without

GENERAL SPECIFICATIONS

Construction: Standalone; terminal access at the front
Degree of protection: IP20 (If the solderless terminals are covered with insulation tubes.)
Surge protection type: Voltage limiting type one-port SPD
Connection
  Line: M5 screw terminal (torque: 2.5 N·m)
  Alarm output: Tension clamp
Applicable wire size
 Line: See the drawing below.
 Alarm output: 0.13 to 1.5 mm2, stripped length 8 mm
Screw terminal
 Line
: Nickel-plated steel
 Alarm output: Tin-plated copper alloy
Housing material: Flame-resistant resin (black)
Alarm output: Trips when the thermal breaker operates. (N.C. contact)
Rated load:
250 V AC @50 mA (resistive load)
24 V DC @50 mA (resistive load)
Safety function: Thermal breaker incorporated
Monitor LED: Green LED turns on during normal conditions between 150 and 600 V DC, and turns off during failure condition, power off and the thermal breaker operating.

INSTALLATION

Operating temperature: -25 to +80°C (-13 to +176°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Mounting: DIN Rail
Weight
  MATP-600Mx
: 200 g (0.44 lb)
  MATP-600Hx: 250 g (0.55 lb)

PERFORMANCE

Max. continuous operating voltage (Uc): 600 V DC
Discharge voltage: (Line to earth) 600 V DC
Maximum surge voltage: 2.5 kV
Maximum (Imax) and Nominal (In) discharge current: (8/ 20 μs)
• MATP-600Mx: 20 kA (Imax), 10 kA (In)
• MATP-600Hx: 40 kA (Imax), 20 kA (In)
Response time: ≤ 4 nsec
Leakage current: ≤ 1 mA
Insulation resistance: ≥ 100 MΩ with 500 V DC (line to alarm output)
Dielectric strength: 2000 V AC @ 1 minute (line to alarm output)
Surge protection: IEC 61643-1 Class II

CONNECTION EXAMPLES

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm [inch]

SCHEMATIC CIRCUITRY

--------------------
