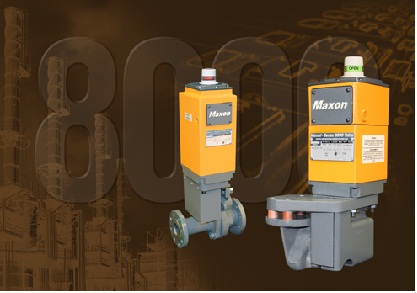

Maxon - Series 8000 Air Actuated Valves for liquid service

Series 8000 Air Actuated Valves for liquid service

• Pneumatically actuated valves with powerful closing spring for reliable operation
• Compact design with integral solenoid, quick exhaust and position switches that protects components, simplifies piping and minimizes space requirements
• Factory Mutual (FM), CSA (6.5 C/I & 3.9) approved safety shut-off valves
• Hazardous Location approved: Intrinsically Safe for Class I, Div. 1 (and ATEX Zone 2/22 when ordered with the ATEX IS solenoid); Non-Incendive for Class I, Div. 2
• Top mounted 360-degree open-shut visual position indication
• Cast iron and carbon steel body assemblies with internal trim options to handle general purpose or severe fluids
• Ambient temperature ranges of -40°F (-40°C) to 140°F (60°C); Fluid temperature range of -40°F (-40°C) to 550°F (288°C)
• Application flexibility provided with 3/8" (DN10) through 2" (DN50) line sizes & line pressures up to 740 psig
• Actuator assemblies are field-replaceable and available in 120VAC 50/60 Hz, 240VAC 50/60 Hz, and 24VDC (with low power option), rated for NEMA 4, NEMA 4X and IP65

Product Downloads
IMPERIAL

• Technical Catalog Literature

Product Downloads
METRIC

• Technical Catalog Literature

Product Downloads
VALVE TECHNICAL DATA

• Valve Maintenance
