Metal Sheathed RTD (RESIMIC)
RESIMIC has a monolithic structure comprising of platinum resistance element and MI cable (MgO compacted, metal sheathed lead wires). This RTD has very quick response, longer service life and high accuracy under critical conditions.
| Type | PT100, JPT100 |
| Sheath O.D. (mm) | 3.2, 4.8, 6.0, 6.4, 8.0 |
| Lead Connection | 2-wires, 3-wires, 4-wires |
| Number. of Element | 1(single), 2(double) |
| Rated Current | 1mA, 2mA, 5mA(only for JPT100) |
| Class | JIS Class A, JIS Class B, IEC Class A, IEC Class B |
| Code | Operating Temperature Range |
| LL | -200℃ up to under -40℃ |
| ML | -40℃ up to +250℃ |
| MH | under +400℃ |
| MH | under +500℃ |
| HH | under +650℃ |
*The above operating temperature range is our internal arrangement in production.

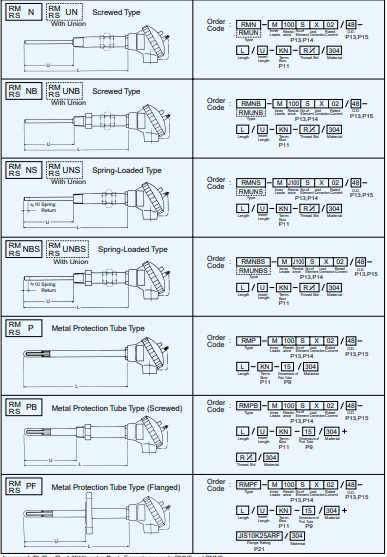

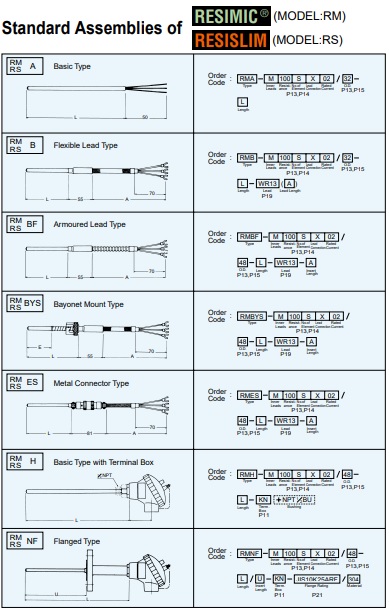

Standard Models of RESIMIC (Model: RM)
RMB: Flexible Lead Type
RMES(L): Metal Connector Type
RMH: Terminal Head Type
RMN: Screwed-in Plain Nipple Type
RMNF: Flange (Ferrule) Type
RMP: Wall-hanging Type (for room temp.)
1) Quick Response:
Since RESIMIC® sensing part is filled with high purity alumina powder and protected by a metal sheath, it has much faster response than those of ordinary RTD's and can follow any slight change in temperature.
2) High Flexibility:
Except for the sensing part of up to 60mm from the tip, it can be bent to the radius equal to 2 times of the sheath O.D.
3) High Accuracy:
Since high purity platinum resistance wire is used, it has high accuracy falling within the class of A or B stipulated by JIS C1604-1997, or other internationally known Standards.
4) Wide Variety of Specifications:
Outer diameters from 3.2mm to 8.0mm and total length up to 150 meters are available.
5) Wide Range of Measuring Temperatures:
From cryogenic (－200℃) to high temperature (＋500℃) can be measured although it may vary depending on surrounding atmospheres.
