Metal Sheathed Thermocouple (THERMIC)
Liên hệ
Còn hàng
Metal Sheathed thermocouple is comprised of metal sheath in which the thermoelectric elements are embedded in highly compacted magnesium oxide (MgO) insulation.
The construction guarantees a superb insulation quality and high resistance to pressure, and has, in addition, an excellent flexibility, which has been given to it by annealing in a proper method
| Types of Thermocouple | K, E, J, T, N, R |
| Sheath O.D. (mm) | 0.25, 0.5, 1.0, 1.6, 2.2, 3.2, 4.8, 6.0, 6.4, 8.0, 12.7 |
| Sheath Material | SS316L, SS310S, Inconel 600 |
| Class | JIS Class 1, JIS Class 2, IEC Class1, IEC Class2, ASTM Special, ASTM Standard |
| Pair | Single, Double, Tripple |
| Hot Junctions | Type I(Grounded), Type II(Ungrounded), Type III(Exposed) |
*Please consult us for other sheath material, type of thermocouple and dimension.

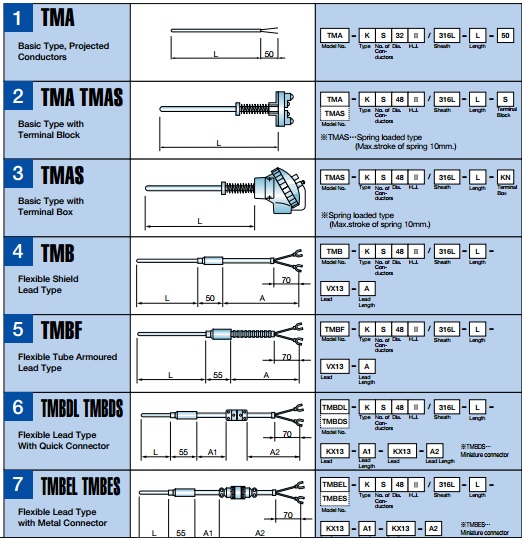

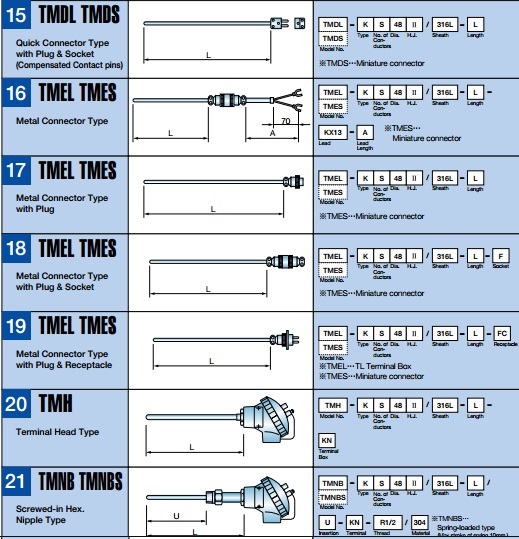

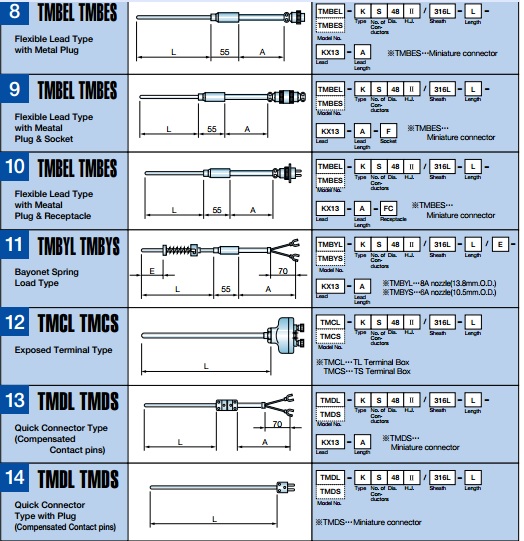

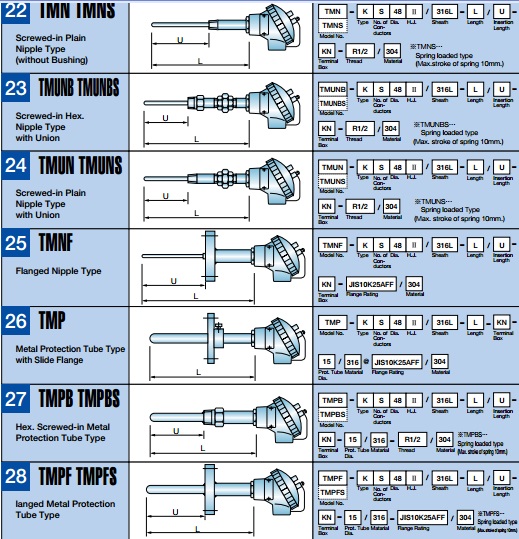

Standard Models of THERMIC Metal Sheathed Thermocouple (Model: TM)
Flange Nipple Type TMNF
Flexible Shield Lead Type TMB
Metal Connector Type TMES(L)
Quick Connector Type TMDL
Screwed-in Plain Nipple Type TMN
Terminal Head Type TMH
