Model No. A□20、A□10、A□15

Liên hệ Còn hàng

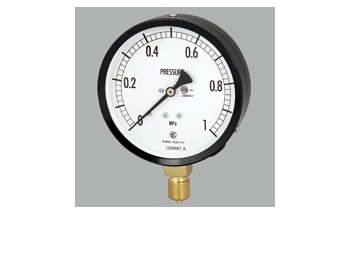

General Industrial Pressure Gauges

Model No. A□20、A□10、A□15



Đồng hồ đo áp suất ống bourdon được cung cấp và chế tạo theo JIS B 7505-1. Máy đo dễ dàng xử lý với sự đơn giản có cấu trúc của nó với phần tử đo đàn hồi (ống bourdon) thành một độ lệch gây ra bởi sự thay đổi áp suất được truyền đến một con trỏ mang chuyển động quay. Nó được áp dụng cho nhiều ứng dụng cung cấp nhiều loại áp lực khác nhau.

Feature

  • •7-digits part number will be printed under NKS trademark on dial.
    •Verification standard inspection mark (Type Approval) can be attached (Depending on size, precision and pressure range).
    •Available in many standard pressure ranges and can accommodate demand for use with corrosive media.
    *To maximize performance, select full scale pressure range as normal
    operating pressure range which comes to conditions below:
      For constant pressure
    The maximum operating pressure should not exceed
    three-quarters of the full-scale range. For fluctuating pressure
    The maximum operating pressure should not exceed
    two-thirds of the full-scale range.
    Select proper wetted parts compatible with process fluid (gas and liquid)
    which the gauge will be subjected.
     Please refer to JIS B 7505-1 for details.
    *Please select "Use no oil" to use gauge on oxygen service.
    Please select "Use no oil" and "Corrosion-proof" type to use gauge on acetylene service.



Catalog - Model No. A□20、A□10、A□15
