Model No. BA, BC, BE, BG, BJ, BL

Process Industrial Pressure Gauges

Model No. BA, BC, BE, BG, BJ, BL

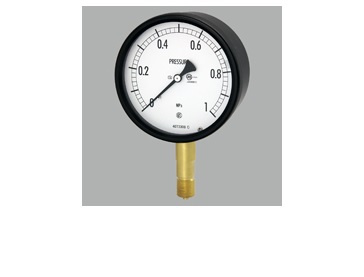

The bourdon tube pressure gauge is offered and made in accordance with JIS B 7505-1. The gauge is easy to handle with its structured simplicity with elastic measuring element (bourdon tube) into a deflection caused by applied pressure change transmitted to a rotary geared movement carrying pointer. It is applicable to variety of applications offering wide varieties of pressure ranges.pointer, and is easy to handle because its construction is simple. Also, wide pressure range measurements are performed and it is used in a wide range of fields.

Feature

• •Can be used under rain, frost, etc. conditions by
  adoption of sealed case. (JIS C 09220 IP43 equivalent)
  •Verification standard inspection mark (Type Approval)
  can be attached (Depending on size, precision and
  pressure range).
  •Available in many standard pressure ranges and can
  accommodate demand for use with corrosive media.
  ＊To maximize performance, select full scale pressure range as normal
  operating pressure range which comes to conditions below:
  　 For constant pressure
  The maximum operating pressure should not exceed
  three-quarters of the full-scale range. For fluctuating pressure
  The maximum operating pressure should not exceed
  two-thirds of the full-scale range.
  Select proper wetted parts compatible with process fluid (gas and liquid)
  which the gauge will be subjected.
  　 Please refer to JIS B 7505-1 for details.
  ＊Please select "Use no oil" to use gauge on oxygen service.
  Please select "Use no oil" and "Corrosion-proof" type to use gauge on
  acetylene service.

Catalog - Model No. BA, BC, BE, BG, BJ, BL
