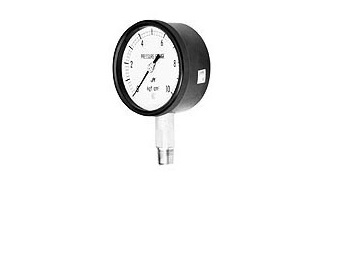

Model No. BN13

Standardized Articles JPI Pressure Gauges

Model No. BN13

This pressure gauge is designed in accordance with JPI standard. The standard specifies bourdon tube pressure gauge specification and performance to suit for Petroleum industry (including Petroleum refining, Petrochemical and natural gas industry).

Feature

• ・Highly durable
  　Vibration 25Hz 0.75G for 200 hours within ±1.0%F.S.

  ＊To maximize performance, select full scale pressure range to indicate normal operating pressure which comes to 　conditions below.
  　　　For constant pressure　: The maximum operating pressure should not exceed three-quarters of the full-
  　　　　　　　　　　　　　　　scale range.
  　　　For fluctuating pressure: The maximum operating pressure should not exceed two-thirds of the full-scale
  　　　　　　　　　　　　　　　range.
  　Select appropriate wetted parts compatible with process fluid (gas and liquid) which the gauge will be
  　subjected.
  　Please refer to JIS B 7505-1 for details.

  ＊Bourdon tube pressure gauge designed for the JPI standard (JPI-7S-50-96) is discontinued since July 2015.

Catalog - Model No. BN13
