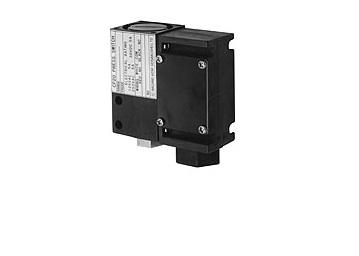

Pressure Switch

Model No. CP20



This small pressure switch for limited space installation is suitable for use with hydraulic equipment, injection molding machine, extraction molding apparatus, turbine, hydraulic unit, boiler, hydraulic process line control for construction machinery and other monitoring for those long life and robustness are essential.

Feature

  • ・Small pressure switch suitable for hydraulic related monitoring
    ・Consists of lever and axis which is simple and good repeatability
    ・Pressure receiving part utilizing sealed piston without drain pipe. High durability wit 200 million cycles
     (Operating range: 30 to 70%max.P.  Pressure cycle: 200cycles/min.)

    *To maximize performance, select full scale pressure range to indicate normal operating pressure which comes to  conditions below.
       For constant pressure : The maximum operating pressure should not exceed three-quarters of the full-
                   scale range.
       For fluctuating pressure: The maximum operating pressure should not exceed two-thirds of the full-scale
                   range.
     Select appropriate wetted parts compatible with process fluid (gas and liquid) which the gauge will be
     subjected.
     Please refer to JIS B 7505-1 for details.



Catalog - Model No. CP20
