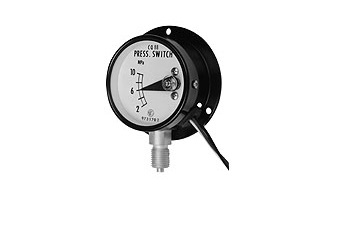

Model No. CQ88

Pressure Switch

Model No. CQ88

This pressure switch is mainly focused on use on hydraulic apparatus designed with small size and high durability. Combination use with φ60 JIS pressure gauge is suitable.

Feature

• ・High pressure switch with narrow deadband
  ・Incorporating bourdon tube element eliminating worry of leak occurred like piston type pressure switch
  ・Small and lightweight
  ・Common dimensions as JIS pressure gauge to make installation easy at panel mounting

  ＊To maximize performance, select full scale pressure range to indicate normal operating pressure which comes to 　conditions below.
  　　For constant pressure　: The maximum operating pressure should not exceed three-quarters of the full-scale 　　　　　　　　　　　　　　range.
  　　For fluctuating pressure: The maximum operating pressure should not exceed two-thirds of the full-scale
  　　　　　　　　　　　　　　range.
  　Select appropriate wetted parts compatible with process fluid (gas and liquid) which the gauge will be
  　subjected.
  　Please refer to JIS B 7505-1 for details.

Catalog - Model No. CQ88
