Model No. GA_
Liên hệ
Còn hàng

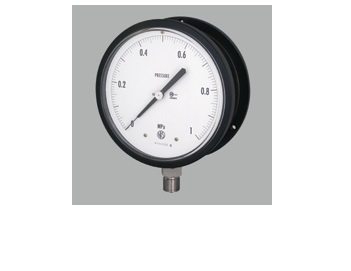

Grade 0.6 Pressure Gauge
Model No. GA_
This pressure gauge is designed for high accuracy made of stainless bourdon tube with rustproof structure. High accurate pressure gauge can be utilized for high accurate pressure measurement, R&D purpose and as test gauge for calibration purpose.
Feature
- ・Bourdon tube is designed for high accuracy made of stainless material (SUS316) contributing to high corrosion
resistance.
・It features blow out protection in case of event when pressure gauge breaks while monitoring.
*To maximize performance, select full scale pressure range to indicate normal operating pressure which comes to conditions below.
For constant pressure : The maximum operating pressure should not exceed three-quarters of the full-
scale range.
For fluctuating pressure: The maximum operating pressure should not exceed two-thirds of the full-scale
range.
Select appropriate wetted parts compatible with process fluid (gas and liquid) which the gauge will be
subjected.
Please refer to JIS B 7505-1 for details.
*Specify use no oil for oxygen service. Specify corrosion resistant and use no oil for Acetylene measurement
application.
