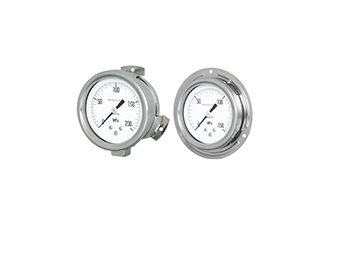

Model No. GF3

Solid Front Pressure Gauges

Model No. GF3

This is pressure gauge with safe and durable construction designed for Petrochemical, Nuclear and other types of plant process applications. Good environmental resistance contributes for good performance with other types of applications.

Feature

• ・Solid front case providing a blow-out back safety case design eliminates risk in the event of the break of
  　bourdon tube.
  ・Incorporated high durable pressure sensing element contributes for high pressure resistance.
  ・Bayonet case design shuts off atmospheric pressure helps for high environmental resistance.
  ・The gauge is designed in accordance with ASME standard B40,1M GAUGES-PRESSURE indicating Dial Type-
  　Elastic Element.

  ＊To maximize performance, select full scale pressure range to indicate normal operating pressure which comes to 　conditions below.
  　　　For constant pressure　: The maximum operating pressure should not exceed three-quarters of the full-
  　　　　　　　　　　　　　　　scale range.
  　　　For fluctuating pressure: The maximum operating pressure should not exceed two-thirds of the full-scale
  　　　　　　　　　　　　　　　range.
  　Select appropriate wetted parts compatible with process fluid (gas and liquid) which the gauge will be
  　subjected.
  　Please refer to JIS B 7505-1 for details.

Catalog - Model No. GF3
