Model No. KH15

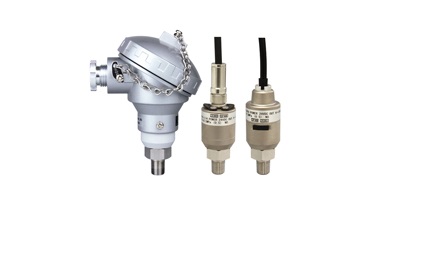

Pressure Transmitter

Model No. KH15

This pressure transmitter uses a semiconductor strain gauge type pressure sensor and built-in electronic circuit to convert pressure to 4 to 20mA DC, 0 to 5V DC, or 1 to 5V DC electric signal and to transmit the signal.
The electrical and the mechanical reliability were improved, and zero and span adjustments were standard specification.

Feature

• ・Equipped zero and span adjustment
  ・Selectable diaphragm material depending on applications (SUS630, SUS316L or Co-Ni alloy)
  ・Enclosure rating IP67 (Cable type: IP52)
  ・Versatile pressure ranges up to 120MPa (120MPa only available for 120MPa)
  ・High speed response time 1ms or less
  ・Equipped with check terminal (Terminal box type only) Output status can be checked without removing wirings

Catalog - Model No. KH15
