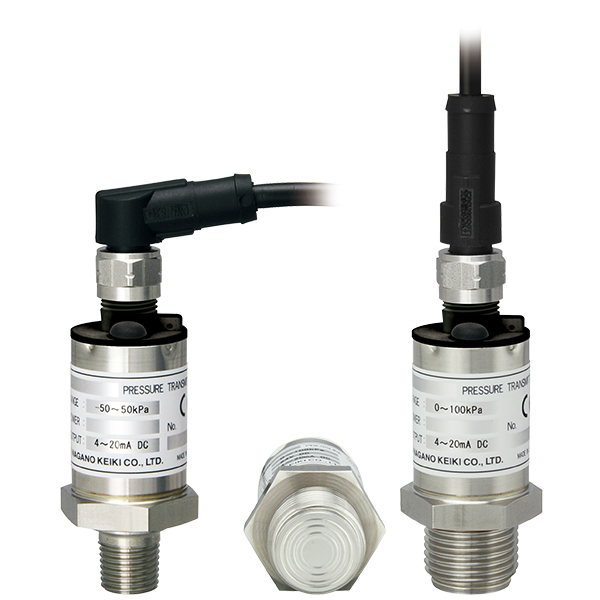

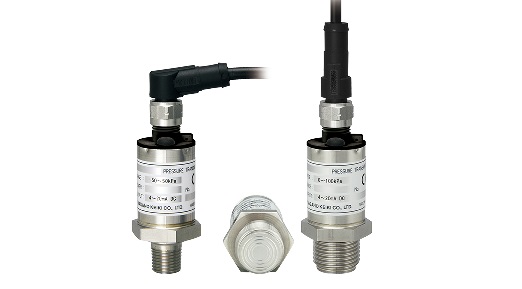

Model No. KP15

Pressure Transmitter

Model No. KP15

KP15 features diaphragm seal type pressure sensing element with SUS316L material. The diaphragm can accommodate various types of fluids and gases measurements in applications where low and absolute pressure measurements are required.

Feature

• ・SUS316L pressure receiving part material
  ・Lowest range 10kPa (standard type)
  　(Compound range -5 to 5kPa)
  ・High accuracy ±0.25%F.S.
  　(Varies depending on the range)
  ・Available for absolute pressure range
  　50kPa abs., 100kPa abs., 200kPa abs.
  ・Response time 1ms or less
  ・Dust and waterproof structure
  　(IP65)
  ・Withstand voltage 500V AC
  ・Equipped with zero adjustment trimmer

Catalog - Model No. KP15
