Model No. SH・SD

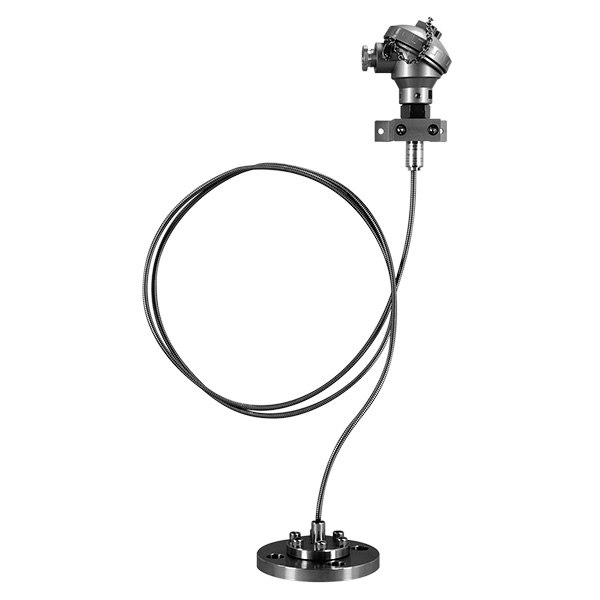

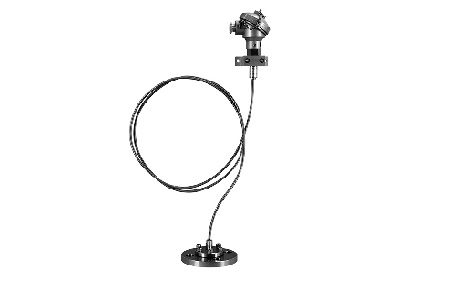

Diaphragm Seal Pressure Transmitter for High Temperature

Model No. SH・SD

This is a pressure transmitter that uses enclosed intermediate liquid for pressure transmission between pressure receiving part and its sensor part. It is used to measure under the high temperature condition and to measure the pressure of high viscosity fluid at normal temperature, and is widely used in the synthetic chemical, synthetic fiber, and plastic industries.

Feature

• ・Capable of pressure measurement under wide range of operating temperature with 0℃ to 330℃ and 0℃ to
  　400℃ (Optionally available with φ8 diameter)
  ・Easy zero adjustable even under fluctuating temperature where compensation is needed
  ・Flush diaphragm type which will prevent pressure media from ingressing directly into sensor element
  　(diaphragm) suitable for high viscous media measurement
  ・Selectable filling liquid (NKS instrument oil X3 or mercury)

Catalog - Model No. SH・SD
