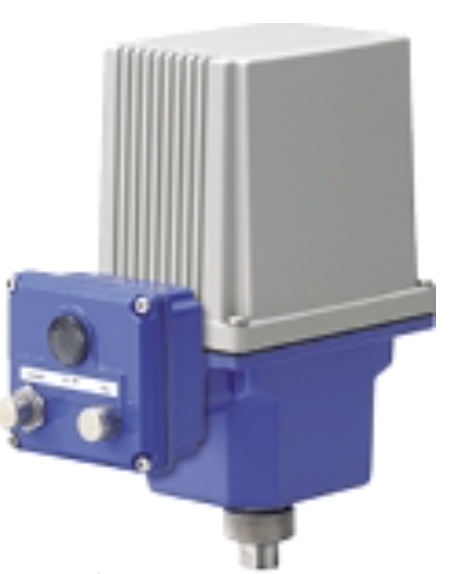

MSP6C MINI-TOP ELECTRONIC ACTUATOR

Liên hệ Còn hàng

Thông tin sản phẩm

MSP6C

ELECTRONIC ACTUATOR

MINI-TOP ELECTRONIC ACTUATOR

(linear type; CC-Link)
Functions & Features
•Small-size control valve actuator
•Direct connection to CC-Link capable PLC and other devices on the same network
•Easy wired
•Uploading device information via CC-Link for maintenance purpose
•1/1000 high resolution
Typical Applications
• For small size proportional control valve in paper manufacturing or co-generation system
• Air conditioning for buildings and factories
• Chemical injection at water treatment plant

MODEL: MSP6C–[1][2][3]–0R

ORDERING INFORMATION

• Code number: MSP6C-[1][2][3]-0R
Specify a code from below for each of [1] through [3].
(e.g. MSP6C-331-0R)

[1] STROKE

3: 10 to 20 mm (.39” to .79”)
4: 20 to 40 mm (.79” to 1.57”)

[2] OPERATION TIME, THRUST

3: 5 sec. / 10 mm, 600 N
4: 8 sec. / 10 mm, 1200 N
6: 15 sec. / 10 mm, 2500 N

[3] OUTPUT STEM TYPE

6: M6 female thread, 0.75 pitch
8: M8 female thread, 1.0 pitch
1: M10 female thread, 1.25 pitch
D: M6 female thread, 1.0 pitch
E: M8 female thread, 1.25 pitch
F: M10 female thread, 1.5 pitch

CE MARKING

0: Without

POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

GENERAL SPECIFICATIONS

Degree of protection: IP66
Operation at a communication error: Extend, retract or stop
Power circuit connection: 4-core microconnector, male
Power cable: Cable with connector (e.g. OMRON XS2F or XS2WD42)
Transmission cable: Conforms to CC-Link
(TE Connectivity TAA545 or Phoenix Contact SAC-4P)
Housing material: Cast aluminum
Drive: Stepping motor
Insulation class: E
Position detection: Potentiometer
Deadband: 0.1 – 1.9 % adjustable (factory set to 1.5 %)
Restarting timer: 0 – 10 sec. adjustable
(factory set to 1.5 sec.)
Isolation: Housing or communication to power
Zero adjustment: 0 – 25 %
Span adjustment: 50 - 100 %
Protective functions: Overload protection
Status indicator LED: Red light blinks in 2 sec. intervals in normal operations; blinks in 0.5 sec. intervals when a foreign object is detected mechanically caught inside.
Manual operating handle: Not available

CC-Link COMMUNICATION

Protocol: CC-Link V1.10
Device type: Remote device station
Station No. setting: Rotary switch; 1 – 64
Required node: 1
Baud rate setting: Rotary switch
L RUN indicator: Red LED
L ERR. indicator: Red LED

OUTPUT SPECIFICATIONS

■ Operation Time & Torque (at rated power voltage)
[Model: Operation Time: Thrust]
MSP6C-x3: 5 sec. /10 mm 600 N (135 lbf)
MSP6C-x4: 8 sec. /10 mm 1200 N (270 lbf)
MSP6C-x6: 15 sec. /10 mm 2500 N (562 lbf)

INSTALLATION

Current consumption
•DC: Approx. 0.5 A
Operating temperature: -5 to +55°C (23 to 131°F)
Operating humidity: 30 to 85 %RH (non-condensing)
Vibration: 0.5 G (4.9 m/s²) max.
Mounting position: All directions　
Do not mount the actuator with its output stem or cable connector on the upside if the actuator is to be exposed to dripping water.
Weight: 2.8 kg (6.17 lb)

PERFORMANCE

Resolution: 1/1000 or 0.015 mm, whichever is greater, with 0.1 % deadband setting
Insulation resistance: ≥ 100 MΩ with 100 V DC
Dielectric strength: 100 V AC @ 1 minute
(housing or communication to power)
