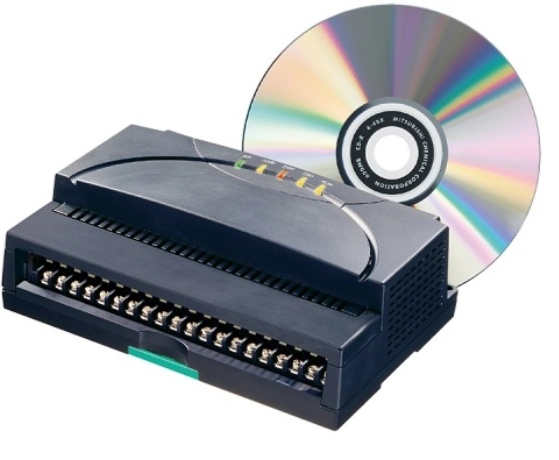

MSR2K-V6

PC Recorder Series

MSRpro SOFTWARE PACKAGE Ver.6

Functions & Features
• Industrial recorder on Windows based PC
• Stores, computes and plots in high speed multichannel input data of variety
• Client-server system
• Total of 2048 analolg-discrete mixed input channels
• 100 msec. high speed storing mode
• Recorded data is exportable to other Windows applications in CSV format
• Daily, monthly, annual report can be created by using report software
• Power demand monitoring is available with power monitor software
• Available as gas demand monitoring
• Batch recording is available with client software

MODEL: MSR2K-V6

ORDERING INFORMATION

• Code number: MSR2K-V6

RELATED PRODUCTS

• Remote I/O R3 series
Network module for Modbus/TCP (Ethernet)
(model: R3-NE1)
Network module for Modbus (model: R3-NM1)
• Remote I/O R5 series
Network module for Modbus/TCP (Ethernet)
(model: R5-NE1)
Network module for Modbus (model: R5-NM1)
• Modbus I/O module (model: R7M, R7E)
• Ethernet communication adaptor (model: 72EM-M4 (firmware version V1.01.03 or higher), 72EM2-M4, GR8-EM)
• RS-232-C/RS-485 converter (model: R2K-1)
• Remote I/O R1M series, R2M series, R1MS, RZMS,
RZUS series
• Multi power monitor (model: 52U, 53U, L53U, 54U)
• Multi power transmitter (model: M5XWTU)
• Paperless recorder (model: 73VR21x (Ver.1 is not applicable), 73VR3100)
· Ethernet tower light (model: IT60RE, IT40SRE, IT50SRE, IT60SRE)

PACKAGE INCLUDING...

• CD-ROM ............................................................. (1)
Builder Software, English/Japanese version
Server Software, English/Japanese version
Client/Analyzer Software, English/Japanese version
Report software MSRpro-Report
Power monitor software MSReco
Power monitor client software MSReco-client
MSRpro Data Conversion Tool
Users manuals for each software program

DATA INPUT INTERFACE

Modbus RTU interface: Connects to RS-232-C
(COM1 through COM8) via an RS-485/ RS-232-C converter; 38.4 kbps
Modbus/TCP interface: 100 Mbps LAN interface compatible with Windows
