MSRpro Client / Server system high performance PC Recorder (Model: MSR2K)

MSRpro Client / Server system high performance PC Recorder (Model: MSR2K)

• Max. 2048 points
• High speed 100 msec. mode up to 256 points
• Active trend view to compare in real time past and present data overlapped on each other
• Arithmetic and logic functions, including the ones performed between channels
• Alarm history and data search functions

The MSRpro is a ‘paperless pen-type’ recording system for PC-based data acquisition and analysis. By communicating with I/O modules that have a LAN card communication interface, the MSRpro reads in input signals and stores them in a hard disk as digital data.

By sharing viewing and storing tasks by ‘Client’ and ‘Server,’ the MSRpro realizes the recording and operating functions of large number of input signals in high speed.

M-System’s remote I/O modules, R3 Series, offers a wide variety of input signals including DC and AC signals, temperature, potentiometer, strain gauge and others.

The MSRpro is a suite of three programs:

MSRpro-Server
Collects and stores input measurement data and executes arithmetic computation to it.

MSRpro-Client/Analyzer
Used to view, analyze and print measurement data.

MSRpro-Builder
Creates and modifies configurations for either program.

Trend View	Overview	Active Trend	Graphic

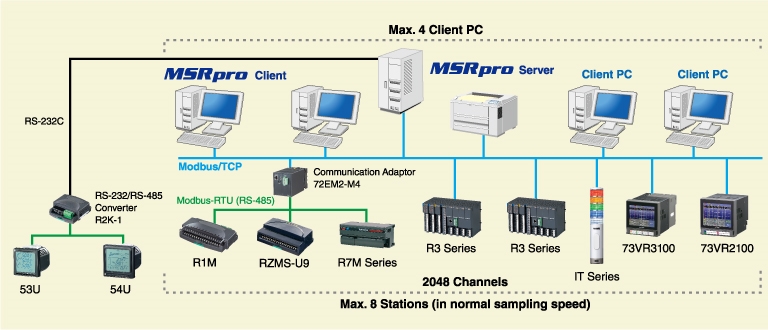

System Configuration Examples
