MULTI POWER MONITOR Model: 54U

Liên hệ Còn hàng

Hãng Sản Xuất: M-system

Xuất Xứ: Nhật Bản

Tình Trạng: Còn Hàng

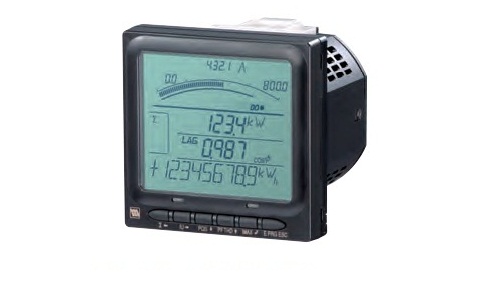

MULTI POWER MONITOR

Model: 54U





MULTI POWER MONITOR

Model: 54U - 2102 - AD4/E

Functions & Features
• Measures simultaneously several variables of a heavycurrent
power system: current, voltage, active, reactive and
apparent power, active and reactive energy, power factor,
frequency, etc.
• All measured values, counter values, display mode,
setting data are stored in the non-volatile memory at the
power off
• Parameters are programmable using the front keys or the
PC via infrared interface
• Mounted using M5 screws or mounting brackets
• 60-segment bargraph
• Displayed measurands are freely selectable
• Open collector output for alarm or energy count
• Loop test output
Typical Applications
• Multi-functional power monitor incorporated in an electric
device: saves space, wiring works, and cost



MODEL: 54U-[1][2][3][4]-AD4[5]



[1] CONFIGURATION
1: Single phase / 2-wire and 3-wire, 3-phase / 3-wire
2: Single phase / 2-wire and 3-wire,
 3-phase / 3-wire and 4-wire



[2] INPUT
1: 480 V / 1 A AC
2: 480 V / 5 A AC


[3] DISCRETE INPUT
0: None
('External Interface' codes 1, 2, 3, 7 and 8 Not selectable.)
1: 24V DC
('External Interface' codes 4, 5, 6, 9 and A Not selectable.)
2: 110V DC
('External Interface' codes 4, 5, 6, 9 and A Not selectable.)


[4] EXTERNAL INTERFACE
1: Modbus, Do × 1, Di × 1
2: 4 – 20 mA DC × 4, Do × 1, Di × 1
4: Modbus, Do × 2
3: 1 – 5 V DC × 4, Do × 1, Di × 1
5: 4 – 20 mA DC × 4, Do × 2
6: 1 – 5 V DC × 4, Do × 2
9: 4 – 20 mA DC × 4 (isolated), Do × 2
7: 4 – 20 mA DC × 4 (isolated), Do × 1, Di × 1
8: 1 – 5 V DC × 4 (isolated), Do × 1, Di × 1
A: 1 – 5 V DC × 4 (isolated), Do × 2


AUXILIARY POWER SUPPLY
AD4: universal
100 – 240 V AC (Operational range 85 – 264 V, 50 / 60 Hz) /
110 – 240 V DC (Operational range 99 – 264 V,
 ripple 10 %p-p max)


[5] OPTIONS (multiple selections)
Language
blank: Japanese
/E: English
Other Options
blank: none
/Q: Option other than the above (specify the specification)
