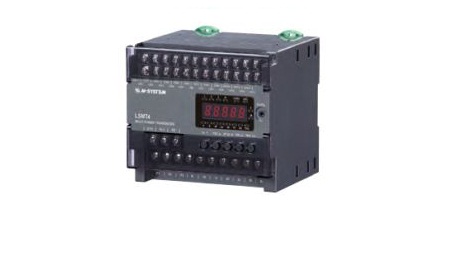

MULTI POWER TRANSDUCER Model: LSMT4

MULTI POWER TRANSDUCER

Model: LSMT4

MULTI POWER TRANSDUCER

Model: LSMT4 - 11A1 - AD4

Functions & Features
• Measures simultaneously several variables of a heavycurrent
power system: current, voltage, active, reactive and
apparent power, active and reactive energy, power factor,
frequency, etc.
• Parameters are programmable using the front keys or the
PC
• Displayed measurands are freely selectable
• Loop test output
• 10-point analog and 2-point energy pulse output
Typical Applications
• Multi-functional power measurement in electric device or
in switching boards.

MODEL: LSMT4–[1][2][3]1–[4][5]

[1] CONFIGURATION
1: Single phase / 2-wire and 3-wire, 3-phase / 3-wire
2: Single phase / 2-wire and 3-wire,
 3-phase / 3-wire and 4-wire

[2] INPUT
1: 480 V / 1 A AC
2: 480 V / 5 A AC

[3] OUTPUT
Current
A: 4 – 20 mA DC
Voltage
4: 0 – 10 V DC
5: 0 – 5 V DC
6: 1 – 5 V DC
DISCRETE OUTPUT
1: Do 2-point

[4] AUXILIARY POWER SUPPLY
AD4: universal
100 – 240 V AC (Operational range 85 – 264 V, 50 / 60 Hz) /
110 – 240 V DC (Operational range 99 – 264 V,
 ripple 10 %p-p max)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
V: 48 V DC
(Operational voltage range 48 V ± 10 % , ripple 10 % p-p max.)

[5] OPTIONS
blank: none
/Q: With options (specify the specification)

MULTI POWER TRANSDUCER Model: LSMT4
