Oxford CMI 150

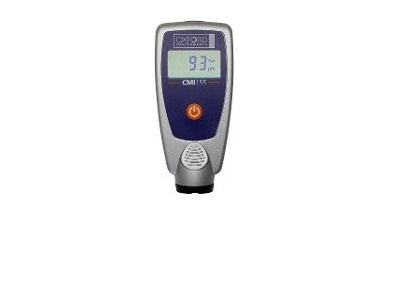

Oxford Instruments CMI 150 Series Gauges

CMI 155 & CMI 157

Coating Thickness on Ferrous and Non-Ferrous Metal Substrates

Rapid Inspection of paint, lacquer and other protective coatings on metal substrates

Dual technology ensures the right measurement on contact

The CMI 155 and CMI 157 measure the thickness of single layer coatings or the total thickness of applied coatings on iron, steel, aluminum and other metal substrates. With a probe foot designed for smooth surfaces and an extended measurement range, they are ideal metrology tools for:

· Paint & powder coaters

· Coating inspectors

· Automotive and aerospace finishers

· Electroplating plants

These compact, handheld gauges are factory calibrated and automatically select the best measurement technique for the base material. The gauges are durably designed, include a rubberized cover and meet IP52 environment protection standards to withstand use in harsh conditions.

Key Features:

· Single button operation

· Factory calibrated

· Automatic substrate detection

· Integrated probe design

· IP52 protection against dust and water

· No operator training required

CMI 150 Series Dual Technology

· Magnetic induction technology for non-magnetic coatings (paint, powder, coat, zinc, cadmium) over ferrous and magnetic steel.

· Conforms to ASTM D7091, B499, B530, DIN EN ISO 2178

· Eddy current technology for non-conductive coatings (paint, powder, coat, epoxy, lacquer) over non-ferrous metals like aluminum, magnesium or copper

· Conforms to ASTM B244, B529, DIN EN ISO 2360

Specifications:

	CMI 155	CMI 157
Thickness Range	0-2000µm 0-80 mil	0-3000µm 0-120 mil
Accuracy	±5% + 3µm ±5% + 0.12 mil	±5% + 3µm ±5% + 0.12 mil
Resolution	1µm @ 0-1000µm 2µm @ 1000-2000µm 0.1 mil @ 0-80 mil	1µm @ 0-1000µm 2µm @ 1000-2500µm 5µm @ 2500-3000µm 0.1 mil @ 0-100 mil 0.2 mil @ 100-120 mil
Dimensions	4.3" x 2" x 1" / 110 x 50 x 25 mm
Weight	3.2 oz. / 90 g
Batteries	2 x AAA
Protection	IP52 (dust and dripping water)
Minimum Sample Dimensions
Convex radius	1" / 25 mm
Concave radius	2" / 50 mm
Clearance	5" / 125 mm
Measurement Area	1.6" x 1.6" / 40 x 40 mm
