Oxford CMI 243

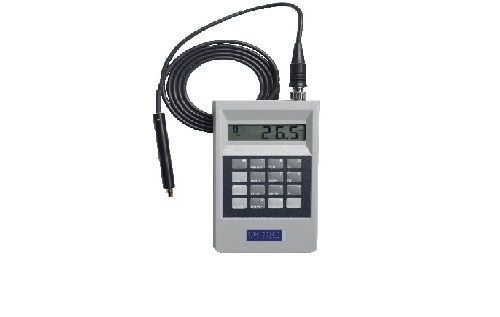

Oxford Instruments CMI 243


For plated metals over ferrous substrates

Accurate measurement, low cost of ownership and dependable quality in a handheld unit

Oxford Instruments's CMI 243 model is a flexible and easy-to-use system designed specifically for metal finishers. TheCMI 243 model requires only one probe to accurately measure metallic coatings over ferrous substrates - even on small, odd shaped or rough surfaces. This gauge is ideal for use on fasteners.

Using phase sensitive Eddy Current technology, this handheld instrument features user-friendly controls and measures with accuracy and precision comparable to X-ray Fluorescence equipment. To achieve a low total cost of ownership, theCMI 243 eliminates the need for multiple probes, calibration standards, operator training and ongoing maintenance. Oxford Instruments delivers dependable quality and stands behind its equipment with a responsive customer service team. Adding to its value, the gauge carries a 1 year warranty.

Measurement Technology
New phase sensitive Eddy Current technology enables the CMI 243 application to achieve accuracy within ±1% (with reference to standards) and precision within 0.3%. Lift-off methods, such as magnetic induction and conventional Eddy Current, don't achieve reliable readings due to the resulting base effect and interference from specimen shape and texture. Oxford Instruments' unique application of Eddy Current technology minimizes the base effect, which enables exact measurements independent of a component's geometry. Moreover there is no need to calibrate on the bare part.

Advanced ECP-m Probe
The ECP-m probe was designed specifically for difficult metallic coating applications. This single probe can measure metallic coatings, such as Zinc, Nickle, Copper, Chrome or Cadmium on ferrous substrates. A small tip provides for easy measurement of small, odd shaped or rough components.

CMI 243 Package Consists Of:

·         CMI 243 Gauge

·         1 Replaceable External Non-Ferrous ECP-m Probe

·         1 Zn/Fe Certified Coated Metal Plate Calibration Standard

·         1 9V Battery

·         PC Link Software

·         Protective Case

·         Quick Start Guide

·         Certificate of Calibration traceable to NIST

·         1 year warranty

·         SMP-1 (Magnetic Probe) can be purchased separately
