P/I TRANSDUCER Series M2PV

P/I TRANSDUCER

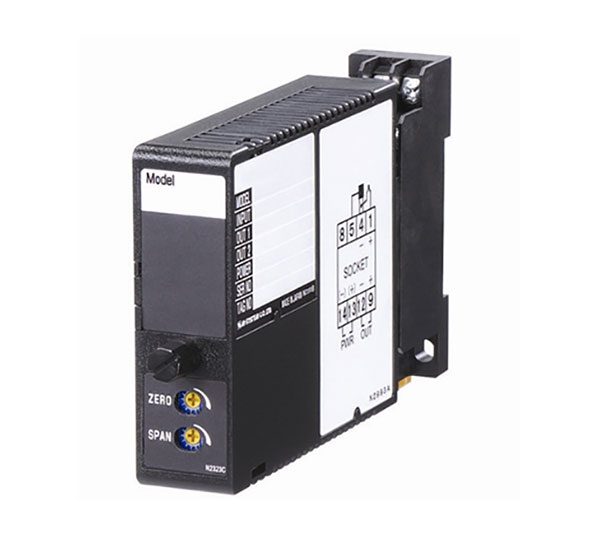

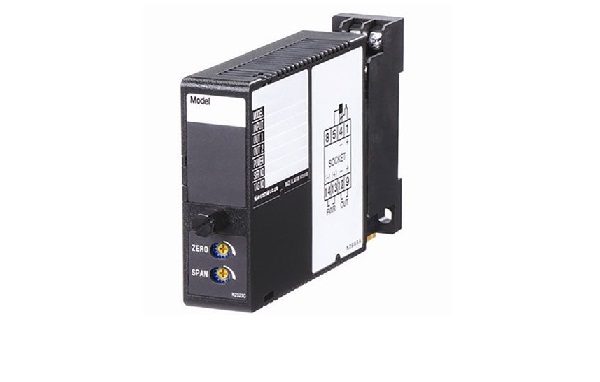

Model: M2PV

P/I TRANSDUCER

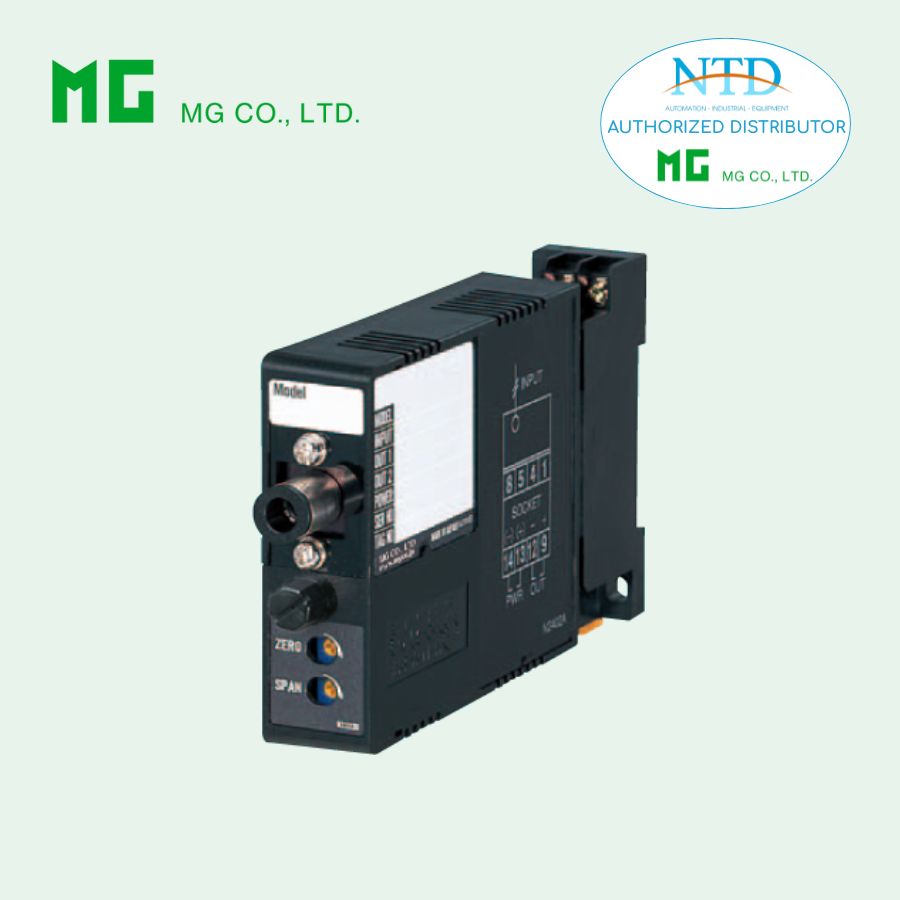

Model: M2PV - C2A - M

Functions & Features
• Converts a standard pneumatic signal into a
proportional DC output
Typical Applications
• Converting a pneumatic system into a 4 – 20 mA for
indicating and controlling in DCS system


MODEL: M2PV–C[1][2]–[3][4]

PNEUMATIC CONNECTION
C: 6 mm dia. (.24”)

[1] INPUT
1S: 19.6 – 98.1 kPa
2S: 20 – 100 kPa
3S: 20.7 – 103.4 kPa
1: 0.2 – 1.0 kgf/cm2
2: 0.2 – 1.0 bar

[2] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[3] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(Select ‘/N’ for ‘Standards & Approvals’ code.)

[4] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)

P/I TRANSDUCER Model: M2PV
