Hãng Sản Xuất: Yamari

Xuất Xứ: Nhật Bản

Tình Trạng: Còn Hàng

Accessories

http://yamari.co.jp/english/img/products_c/products_c_01.jpg



We provide various kinds of accessories for thermocouples and resistance temperature detectors.

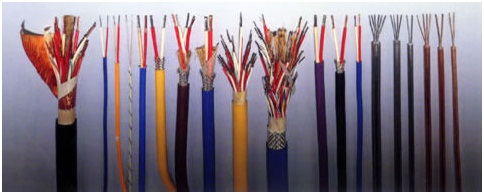

Compensating Cable / Duplex Wire

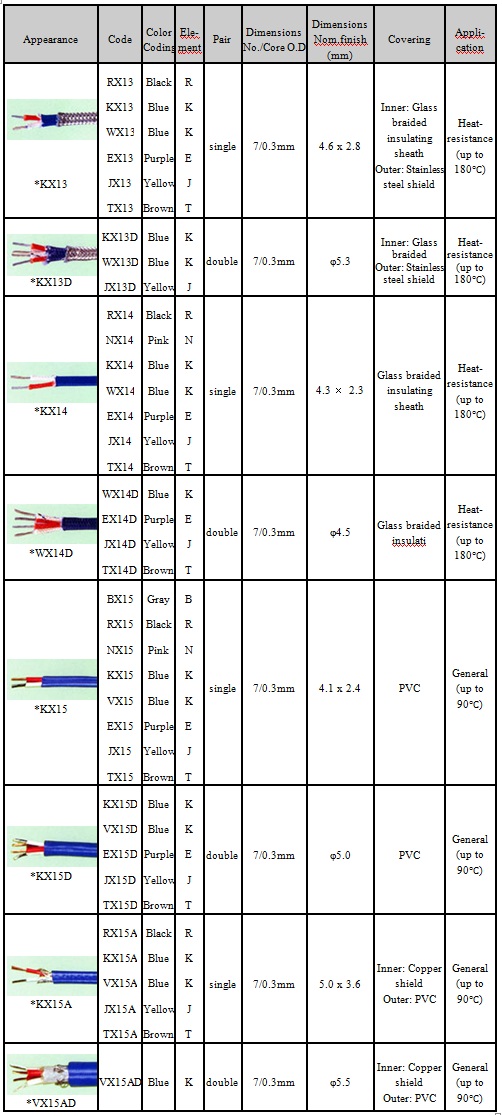

[ Compensating Cable for Thermocouple ]

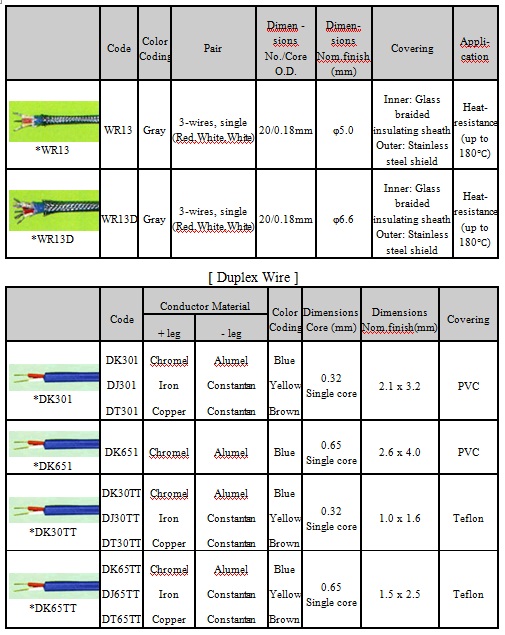

[ RTD Lead Wire ]

Thermo Well



http://yamari.co.jp/english/img/products_c/products_c_d.jpg

http://yamari.co.jp/english/img/space.gif

Thermowell (Drilled Bar Stock Type Protection Tube) is usually being used to ensure longer service life under critical conditions such as very corrosive gasses or liquids, high temperature, high pressure, vibration, shock or high flow velocity. At Yamari, various Thermowells durable under these conditions are manufactured. Please contact us for configuration, material, dimension, etc. including pressure test.

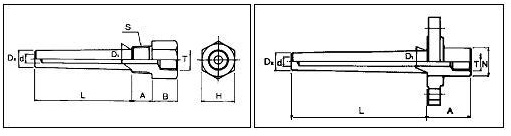

Screwed-in Type



Flanged Type

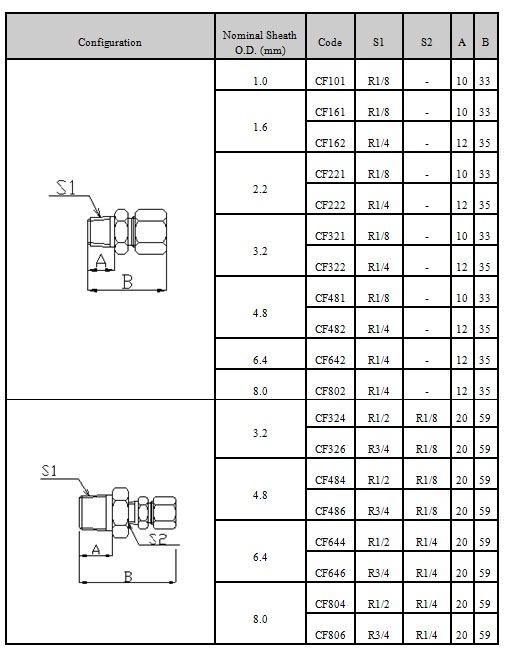

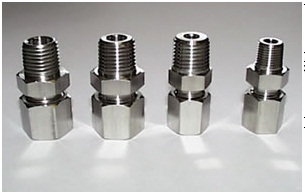

Compression Fitting (CF)

http://yamari.co.jp/english/img/space.gif

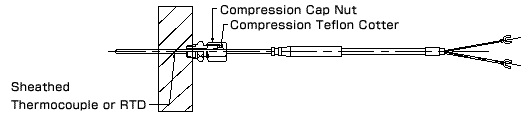

Use the compression fitting to fix sheathed thermocouple or RTD. The compression fitting consists of three parts, a compression cap nut, a compression Teflon cotter, and a compression seat. As a Teflon cotter is compressed by a compression cap nut,, it squishes down the sheath. Please consult us for pressure above 5kg/cm.





Thermocouple Connector

[Standard Connector (Model: DL)]
Solid pin plug and socket are made of extension and compensating grade alloys which are housed in color-coded heat-resistance plastic shells. Select connector in accordance with the type of thermocouple to be used.

http://yamari.co.jp/english/img/space.gif



Code

Type of Thermocouple Used

Shell Color

DL-K

K

Blue

DL-J

J

Yellow

DL-T

T

Brown

DL-E

E

Purple

DL-R

R

Black



[Miniature Connector (Model: DS)]
Except smaller flat bar plug is used, construction is similar to that of standard connector. Recommended for small size THERMIC up to 3.2mm O.D.

http://yamari.co.jp/english/img/space.gif



Code

Type of Thermocouple Used

Shell Color

DS-K

K

Blue

DS-J

J

Yellow

DS-T

T

Brown

DS-E

E

Purple

DS-R

R

Black

-------------------------------------
