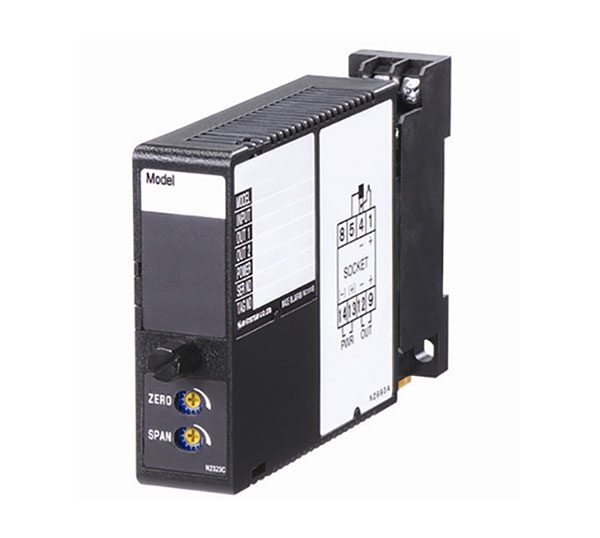

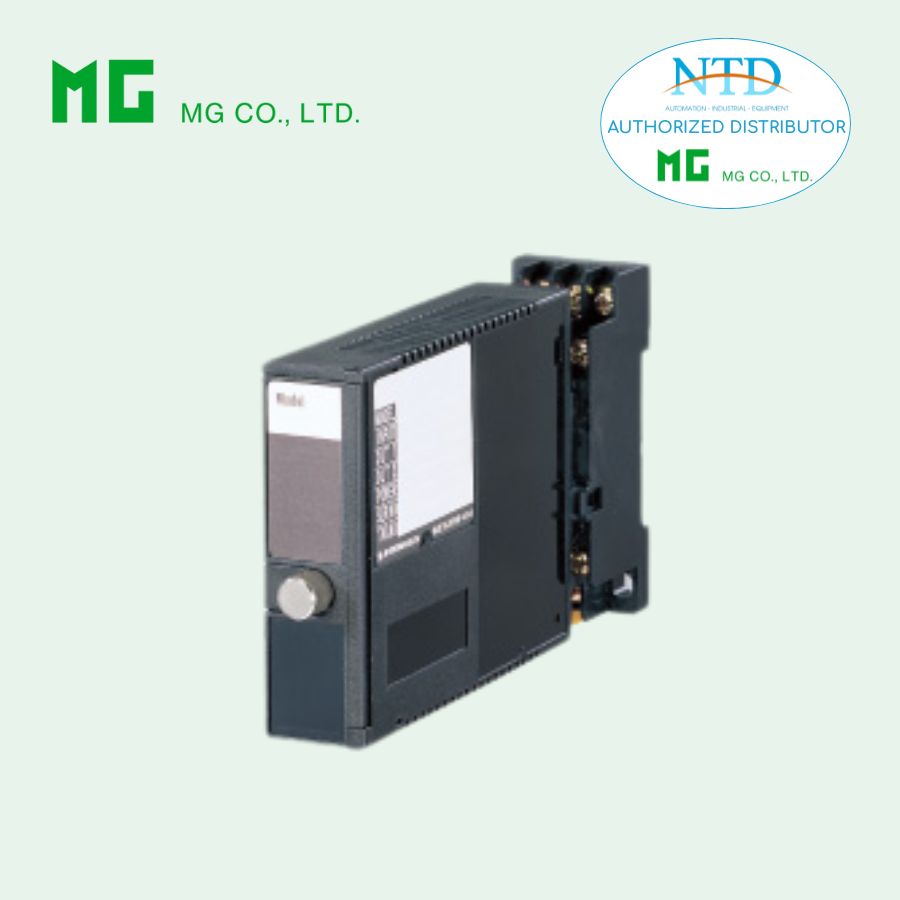

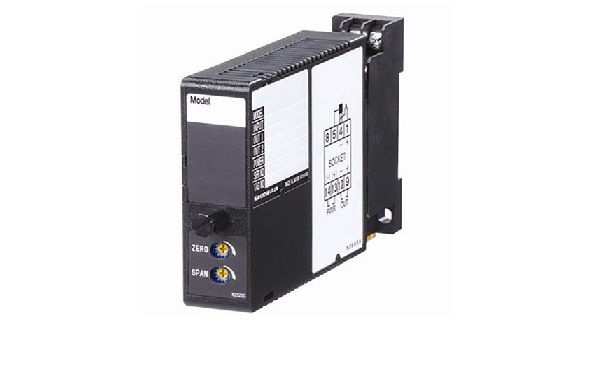

POTENTIOMETER TRANSMITTER Series M2XM2

POTENTIOMETER TRANSMITTER

Model: M2XM2

POTENTIOMETER TRANSMITTER

Model: M2XM2 - 1Z1 - M2

Functions & Features
• Provides a DC output proportional to a potentiometer or
slidewire position input
• PC programmable
• Potentiometer’s zero/span points can be captured by onsite
calibrations
Typical Applications
• Tank levels
• Positions: Compensating non-linear signal from the linking
mechanism of a position detector

MODEL: M2XM2–1[1]–[2][3]

INPUT POTENTIOMETER
1: Total resistance 100 Ω – 10 kΩ
(Configurator software is used to change input range
(total resistance).)

[1] OUTPUT
Current
Z1: Range 0 – 20 mA DC

[2] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(90 – 264 V for UL)

[3] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)

POTENTIOMETER TRANSMITTER Model: M2XM2
