POTENTIOMETER TRANSMITTER Series W2XM

POTENTIOMETER TRANSMITTER

Model: W2XM

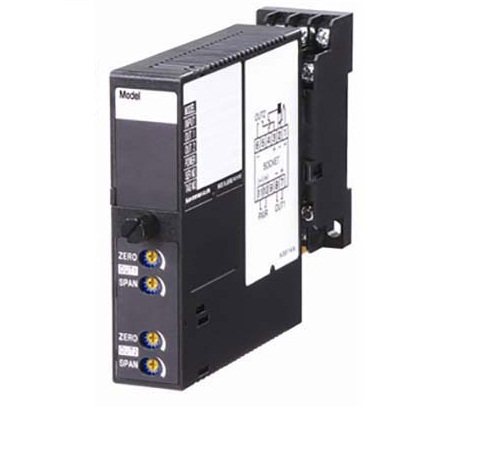

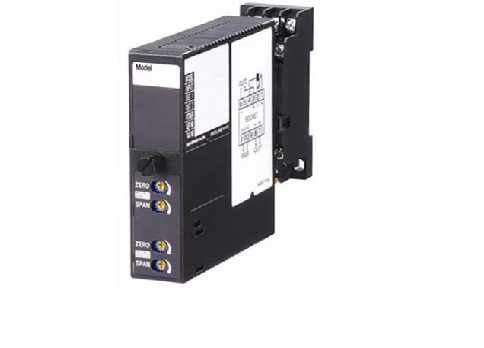

POTENTIOMETER TRANSMITTER

Model: W2XM - -1Z1V3 - M2

Functions & Features
• Provides two DC outputs proportional to a potentiometeror
slidewire position input
• Two independent output ranges
• Burnout detection
• PC programmable
• High-density mounting
Typical Applications
• Tank levels
• Positions

MODEL: W2XM–1[1][2]-[3][4]

INPUT
1: Total resistance 75 Ω – 10 kΩ
(Configurator software is used to change the input range.)

[1] OUTPUT 1
Current
Z1: Range 0 – 20 mA DC

[2] OUTPUT 2
Same range availability as Output 1
Y: None
(Configurator software is used to change output over the
described range of the selected suffix code.
For changing between suffix codes, set the Output Range
Selector on the side of unit before software adjustment.)

[3] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
 47 – 66 Hz)

[4] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE
Other Options
blank: none
/Q: Option other than the above (specify the specification)

POTENTIOMETER TRANSMITTER Model: W2XM
