PULSE ISOLATOR Series M2PP

PULSE ISOLATOR

Model: M2PP

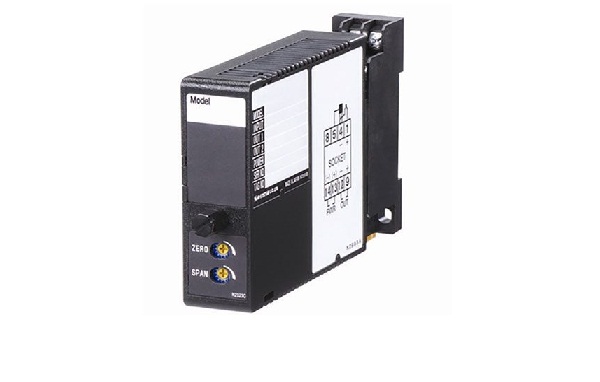

PULSE ISOLATOR

Model: M2PP - 33N - M

Functions & Features
• Galvanically isolates pulse rate signals
• Input frequency = output frequency
• Various outputs (relay, open collector and voltage
pulses)
Typical Applications
• Isolating field pulse signals in order to reduce noises
• Changing e.g. dry contact signal to e.g. 5 V signals

MODEL: M2PP–[1][2][3]–[4][5]

[1] INPUT
1: Mechanical contact (max. 30 Hz)
2: Open collector (max. 10 kHz)
3: Voltage pulse (max. 10 kHz)

[2] OUTPUT
1: Low frequency open collector (max. 30 Hz)
2: High frequency open collector (max. 10 kHz)
3: 5 V pulse (max. 10 kHz)

[3] OUTPUT LOGIC
N: The same as the input
R: Inverted

[4] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(Select ‘/N’ for ‘Standards & Approvals’ code.)

[5] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)


PULSE ISOLATOR Model: M2PP
