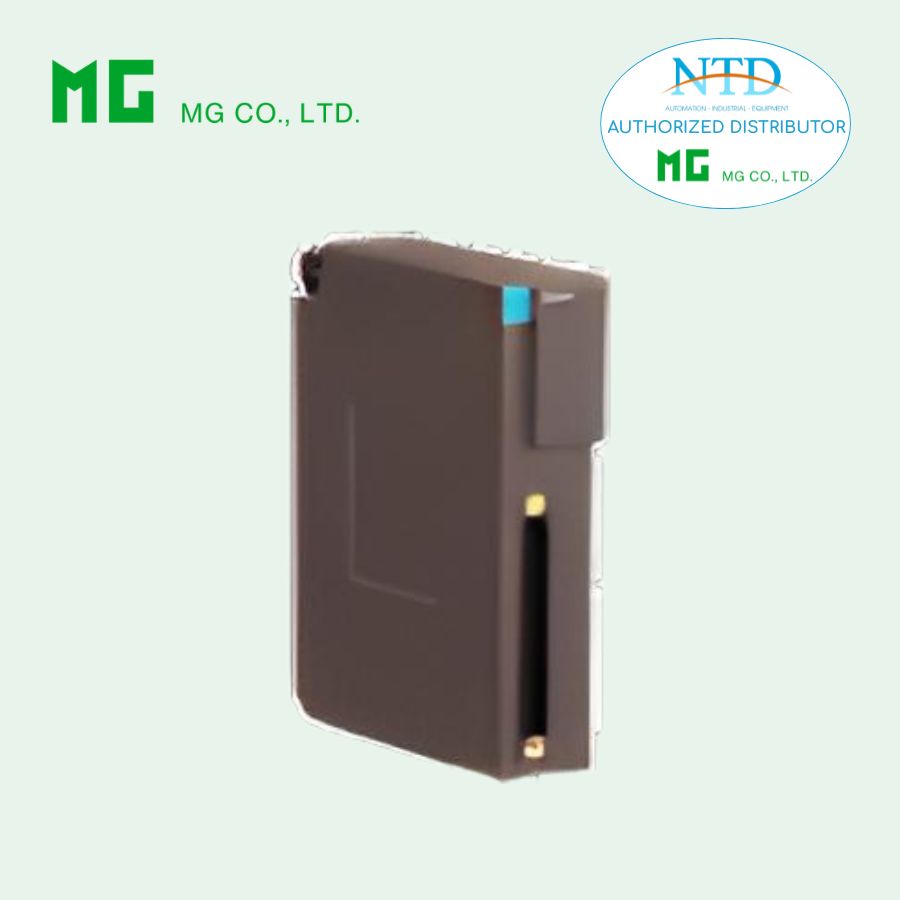

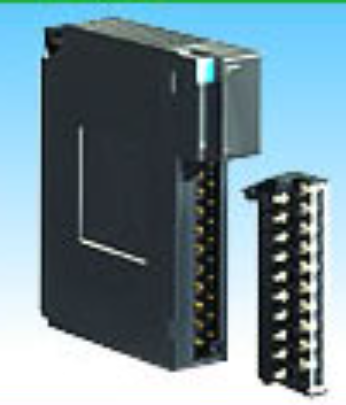

AC CONTACT INPUT MODULE R3Y-DA16B

R3Y-DA16B

Remote I/O R3 Series

AC CONTACT INPUT MODULE

(Di 16 points)

MODEL: R3Y–DA16B[1][2]

ORDERING INFORMATION

• Code number: R3Y-DA16B[1][2]
Specify a code from below for each of [1] and [2].
  (e.g. R3Y-DA16BW/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

NO. OF CHANNELS

16: 16 (AC contact input)

INPUT

B: AC CONTACT INPUT

[1] COMMUNICATION MODE

S: Single
W: Dual

[2] OPTIONS

blank: none
/Q: Options other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating

GENERAL SPECIFICATIONS

Connection
  Internal bus: Via the Installation Base (model: R3-BSx)
  Input: 40-pin connector (OTAX N365P040AU
  Fujitsu FCN-365P040-AU...discontinued))
  Internal power: Via the Installation Base (model: R3-BSx)
Isolation: Input to internal power
Excitation monitor: Selectable with side DIP switch; ON/OFF setting available
RUN indicator: Bi-color (red/green) LED;
Red when the bus A operates normally;
Green when the bus B operates normally;
Amber when both buses operate normally.
ERR indicator: Bi-color (red/green) LED;
Red with excitation abnormality;
Green in normal operating conditions.
Input status indicator: Red LED; turns on with the input ON.
Read rate: 1 / 5 / 10 / 20 / 50 / 70 / 100 / 200 msec. selectable with DIP SW

INPUT SPECIFICATIONS

Number of input: 16 points
Input voltage: 100 – 132 V AC
Input resistance: 12 kΩ (60 Hz), 15 kΩ (50 Hz)
Common: All points (2 terminals)
ON voltage/current: ≥ 80 V AC, ≥ 5 mA
OFF voltage/current: ≤ 30 V AC, ≤ 1.7 mA

INSTALLATION

Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Installation Base (model: R3-BSx)
Weight: 200 g (0.44 lb)

PERFORMANCE

Data allocation: 1
Current consumption: 80 mA
Response time: ≤ 0.1 sec.
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 2000 V AC @ 1 minute
(input to internal power)
2000 V AC @ 1 minute (power input to FG; isolated on the power supply module)
