R5-BS

Remote I/O R5 Series

INSTALLATION BASE

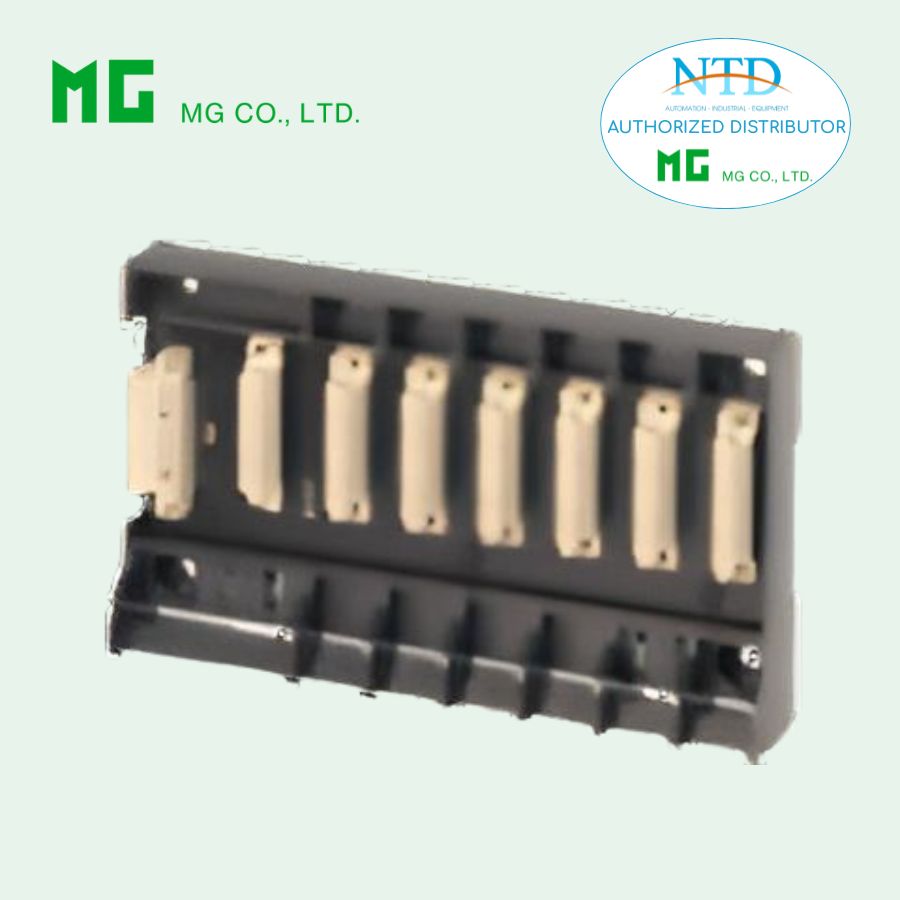

MODEL: R5–BS[1][2]

ORDERING INFORMATION

• Code number: R5-BS[1][2]
Specify a code from below for each of [1] and [2].
  (e.g. R5-BS16/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

[1] I/O CAPACITY

04: 4 slots
05: 5 slots (single communication mode)
08: 8 slots
09: 9 slots (single communication mode)
16: 16 slots

[2] OPTIONS

blank: none
/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
Only solder side of the main PWB is coated.
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating

GENERAL SPECIFICATIONS

Capacity
  Power: 1 module;  2 modules with Extender Base for Power Supply Module (Model: R5-EX1)
  Network interface: 2 modules
(Only one [1] network module for R5-BS05 and BS09;
  Select R5-BS04, BS08 or BS16 for dual-redundant
  network communications.)
  I/O:
    R5-BS04: 4 modules
    R5-BS05: 5 modules
    R5-BS08: 8 modules
    R5-BS09: 9 modules
    R5-BS16: 16 modules

INSTALLATION

Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Surface or DIN rail
Weight (No remote I/O module mounted)
  R5-BS04, BS05: 120 g (0.26 lb)
  R5-BS08, BS09: 170 g (0.37 lb)
  R5-BS16: 280 g (0.62 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC
(internal power or internal bus to ground)
Dielectric strength: 2000 V AC @ 1 minute
(internal power or internal bus to ground)

STANDARDS & APPROVALS

EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive

CURRENT CONSUMPTION

EXTERNAL VIEW

EXTERNAL DIMENSIONS unit: mm [inch]

■R5-BS04, BS05

■R5-BS08, BS09

■R5-BS16

MOUNTING REQUIREMENTS unit: mm [inch]

■R5-BS04, BS05

■R5-BS08, BS09

■R5-BS16
