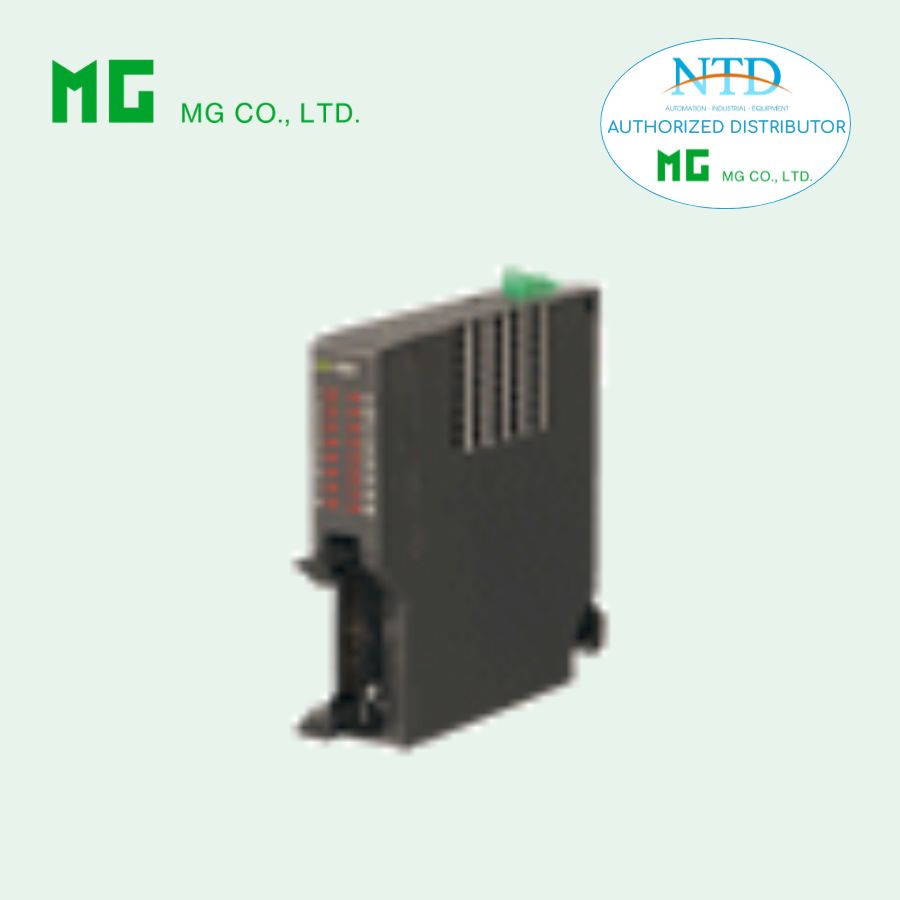

R5-DA16 DISCRETE INPUT MODULE

Liên hệ Còn hàng




ES-6125 Rev.10

R5-DA16

Remote I/O R5 Series

DISCRETE INPUT MODULE

(Di 16 points)

MODEL: R5-DA16[1][2]

ORDERING INFORMATION

• Code number: R5-DA16[1][2]
Specify a code from below for each of [1] and [2].
  (e.g. R5-DA16W/A/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

NO. OF CHANNELS

16: 16 points

[1] COMMUNICATION MODE

S: Single
W: Dual

[2] OPTIONS (multiple selections)

Excitation
Blank: Internal
/A: External (24 V DC, positive common)
Other Options
blank: none
/Q: Option other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating

RELATED PRODUCTS

• Cable (model: MCN20)
(in combination with Relay I/O output block, Omron Model: G7TC-ID16 or G7TC-IA16)

RELATED PRODUCTS

•Cable with connectors (OMRON)
 250 mm (model: G79-O25C)
 500 mm (model: G79-O50C)
•Connector/terminal block converter (OMRON)
model: XW2D-20G6

GENERAL SPECIFICATIONS

Connection
  Internal bus
: Via the Installation Base (model: R5-BS)
  Input: 20-pin connector
  OMRON model: XG4A-2034
  Internal power: Via the base (model: R5-BS)
Isolation: Input to internal bus or internal power
RUN indicator: Bi-color (red/green) LED;
Red when the bus A operates normally;
Green when the bus B operates normally;
Amber when both buses operate normally.
Input status indicator: Red LED; turns on with the input ON.

INPUT SPECIFICATIONS

 Internal Excitation
Input
: Dry contact, 16 points
Common: All negatives
Contact detecting: 5 V DC
ON voltage, current: ≥ 3 V, ≥ 1 mA
OFF voltage, current: ≤ 1 V, ≤ 0.5 mA
 External Excitation
Input
: 24 V DC, 16 points (input resistance 6 kΩ)
Common: All positives
Contact detecting: 24 V DC ±10 %
  ON voltage, current: ≥ 15 V, ≥ 2.5 mA
  OFF voltage, current: ≤ 6 V, ≤ 1 mA

INSTALLATION

Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Installation Base (model: R5-BS)
Weight: 100 g (0.22 lb)

PERFORMANCE

Data allocation: 1
Response time: ≤ 0.1 sec.
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @ 1 minute
(input to internal bus or internal power)
2000 V AC @ 1 minute (power input to FG; isolated on the power supply module)

STANDARDS & APPROVALS

EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive

EXTERNAL VIEW

CONNECTOR PIN ASSIGNMENT

▪ R5-DA16x

▪ R5-DA16x/A

EXTERNAL DIMENSIONS unit: mm [inch]

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

INPUT CONNECTOR

MG CO., LTD.
www.mgco.jp
