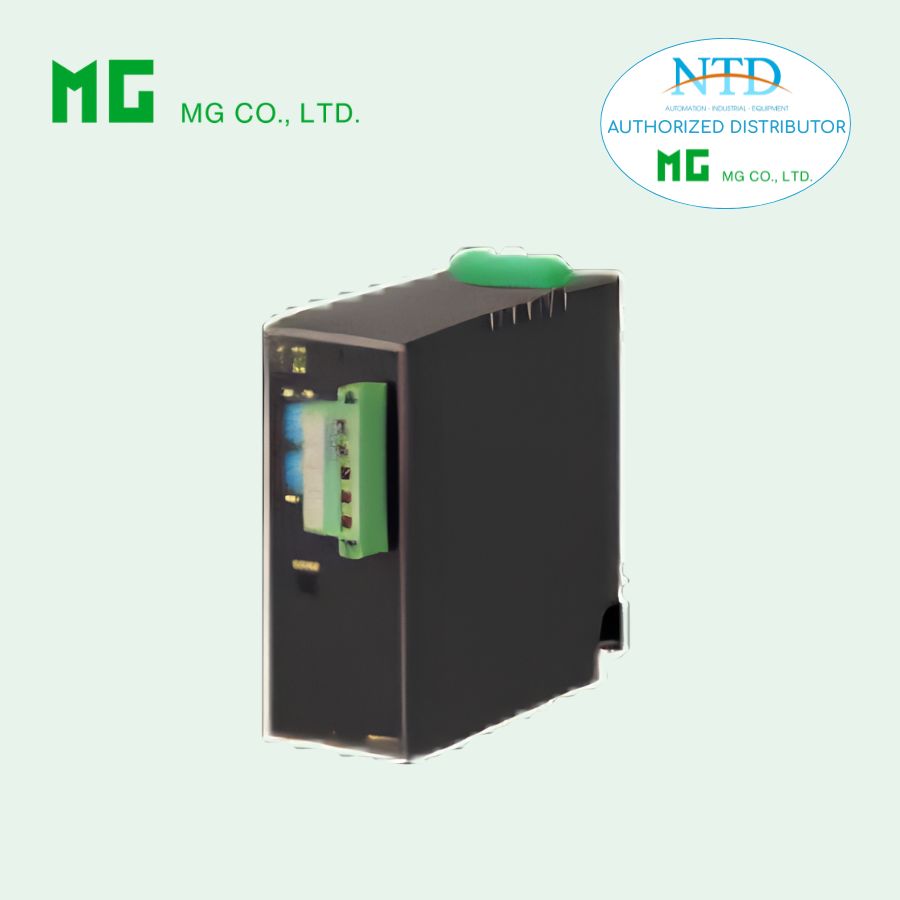

R5-NF1 T-Link INTERFACE MODULE

Liên hệ Còn hàng

ES-6134 Rev.5

R5-NF1

Remote I/O R5 Series

T-Link INTERFACE MODULE

(Fuji Electric T-Link use)

MODEL: R5-NF1[1]

ORDERING INFORMATION

• Code number: R5-NF1[1]
Specify a code from below for [1].
  (e.g. R5-NF1/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

[1] OPTIONS

blank: none
/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating

GENERAL SPECIFICATIONS

Connection
  T-Link: Euro type connector terminal
  (Applicable wire size: 0.2 – 2.5 mm(AWG 24 to 12), stripped length 7 mm)
  Internal bus: Via the Installation Base (model: R5-BS)
  Internal Power: Via the base (model: R5-BS)
Isolation: T-Link to internal bus or internal power
RUN indicator: Bi-color (green/red) LED; green in normal communications; red when receiving (Function selected with DIP SW3)
ERR indicator: Bi-color (green/red) LED; the green ON/blinks in communication errors; red when transmitting (Function selected with DIP SW3)
Data allocation: Mode 1 or 2 set with the side DIP switch
DIP SW other functions
· I/O points
· Input or output or I/O mixed
Refer to the instruction manual for details.

T-Link SPECIFICATIONS

Station No. setting: Rotary switch; 00 – 99
Configuration: Multi-drop
Communication: Half-duplex
Baud rate: 500 kbps
Transmission media/distance:
  KPEV-SB, 0.75 mm2 × 1 pair, 700 m
  T-KPEV-SB, 1.25 mm2 × 1 pair, 1000 m

INSTALLATION

Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Installation Base (model: R5-BS)
Weight: 150 g (0.33 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 500 V AC @ 1 minute (T-Link to internal bus or internal power)

EXTERNAL VIEW

TRANSMISSION DATA DESCRIPTIONS

I/O DATA DESCRIPTIONS

The data allocations for typical I/O modules are shown below.
Refer to the manual for each module for detailed data allocations.
■ANALOG 16 BITS DATA

■ 16-POINT DISCRETE DATA

■ 4-POINT DISCRETE DATA

EXTERNAL DIMENSIONS unit: mm [inch]

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
