Remote I/O R6 Series

POWER SUPPLY MODULE

(Tension clamp)
Functions & Features
• Provides internal power needed for I/O and network modules from power input

MODEL: R6S–PF1–R[1]

ORDERING INFORMATION

• Code number: R6S-PF1-R[1]
Specify a code from below for [1].
  (e.g. R6S-PF1-R/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[1] OPTIONS

blank: none
/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating

GENERAL SPECIFICATIONS

Connection
 Internal bus: Via the Installation Base (model: R6S-BS)
 RUN contact output, power supply: Tension clamp (Applicable wire size: 0.2 to 2.5 mm², stripped length 8 mm)
 Internal power: Via the Installation Base (model: R6S-BS)
Housing material: Flame-resistant resin (black)
Isolation: RUN contact output to internal bus or internal power or power input to FG
Power indicator LED: Green LED turns on when the power is supplied.
RUN indicator: Orange LED turns on in normal communication with the host PLC.
■ RUN CONTACT OUTPUT
RUN contact: Terminals (2 – 3) turns ON and (4 – 3) OFF in normal communication with the host PLC;
Terminals (2 – 3) turns OFF and (4 – 3) ON in abnormal communication.
Rated load: 250 V AC @ 0.5 A (cos ø = 1)
30 V DC @ 0.5 A (resistive load)
Maximum switching voltage: 250 V AC or 30 V DC
Maximum switching power: 250 VA or 150 W
Minimum load: 1 V DC @ 1 mA
Mechanical life: 2 × 10⁷ cycles (rate 300 cycles/min.) When driving an inductive load, external contact protection and noise quenching recommended.

INSTALLATION

Power input
•DC: Operational voltage range 24 V DC ±10 % ripple 10 % p-p max. Approx. 1 A with the maximum I/O extension
Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Installation Base (model: R6S-BS)
Weight: 60 g (2.1 oz)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 2000 V AC @ 1 minute (RUN contact output to internal bus or internal power or power input to FG)

STANDARDS & APPROVALS

EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
Low Voltage Directive
  EN 61010-1,EN 61010-2-201
  Measurement Category II (RUN contact output)
  Pollution Degree 2
  RUN contact output to internal bus or power
  supply: Reinforced insulation (300 V)
RoHS Directive

CURRENT CONSUMPTION

The network module and I/O modules operate with 24V DC power supply via the power supply module.  The total current consumption of the network module and I/O modules is required to be not more than 1 A.  If the total current consumption exceeds 1 A, change the combination of I/O modules or reduce the number of I/O modules.
R6x－SV2 20mA
R6x－SS2 20mA
R6x－TS2 20mA
R6x－TS2A 20mA
R6x－RS2 20mA
R6x－DS1 55mA
R6x－YV2 25mA
R6x－YS2 45mA
R6x－DA4 10mA
R6x－DC4A 20mA
R6x－DC4B 20mA
R6－NC1 110mA
R6－NC3 110mA
R6－ND1 40mA
R6－NE1 75mA
R6－NE2 75mA
R6－NM1 50mA
R6－NM2 50mA
R6－NF1 100mA
R6－NP1 100mA

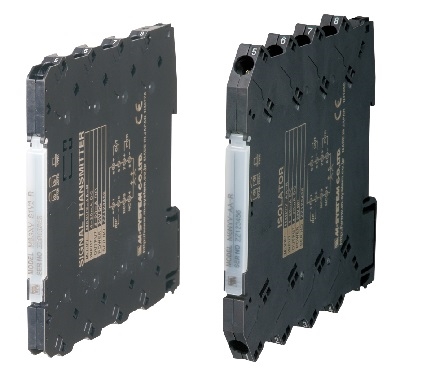

EXTERNAL VIEW

(With the cover open)

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm [inch]

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Note: In order to improve EMC performance, bond the FG terminal to ground.
Caution: FG terminal is NOT a protective conductor terminal.
