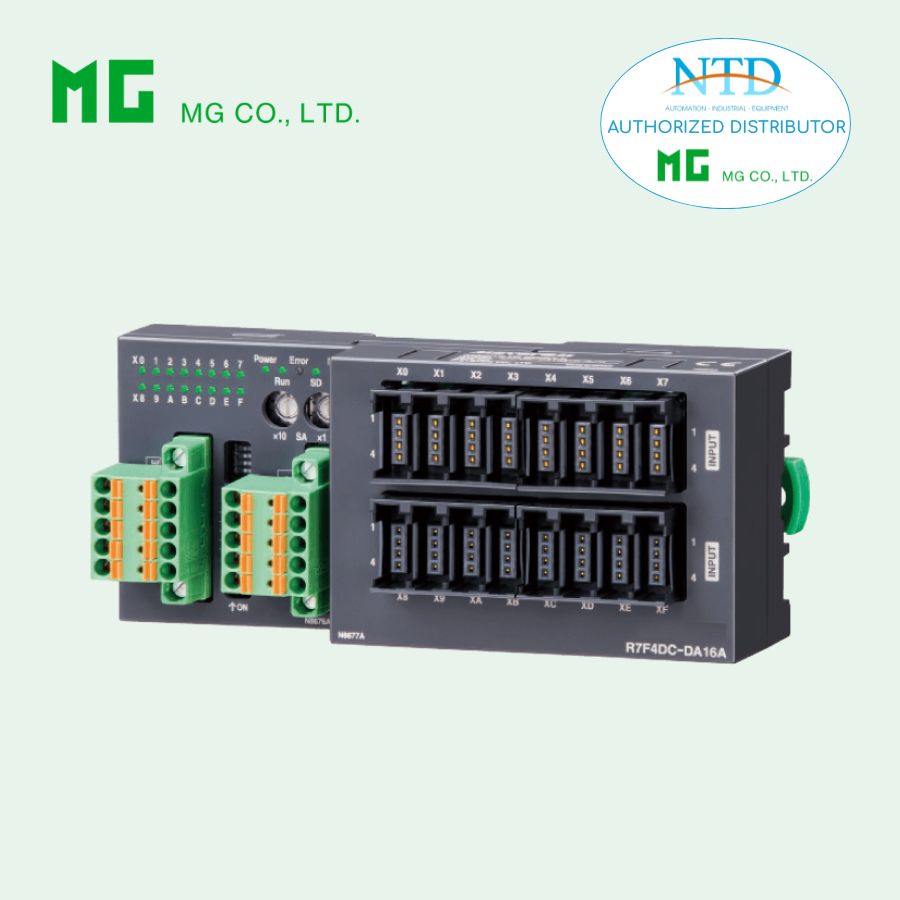

CC-Link I/O MODULE R7F4DC-DA16B-J
R7F4DC-DA16B-J
Remote I/O R7F4D Series
CC-Link I/O MODULE
(PNP discrete input, 16 points, one-touch connector)
Functions & Features
• Interchanges discrete I/O signals with the fieldbus (CC-Link)
MODEL: R7F4DC-DA16B-J-R[1]
ORDERING INFORMATION
• Code number: R7F4DC-DA16B-J-R[1]
Specify a code from below for [1].
(e.g. R7F4DC-DA16B-J-R/Q)
• Specify the specification for option code /Q
(e.g. /C01)
I/O TYPE
DA16B: PNP discrete input, 16 points
TERMINAL BLOCK
J: Tension clamp terminal block for power
Tension clamp terminal block for communication
One-touch connector for input
POWER INPUT
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
[1] OPTIONS
blank: none
/Q: With options (specify the specification)
SPECIFICATIONS OF OPTION: Q
COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
RELATED PRODUCTS
• CSP+ file
The CSP+ file are downloadable at our web site.
CSP+ file is also downloadable at CC-Link Partner Association's web site.
GENERAL SPECIFICATIONS
Connection
CC-Link: Tension clamp terminal block
Power supply, exc. supply: Tension clamp terminal
Input: One-touch connector
Housing material: Flame-resistant resin (gray)
Isolation: Input or exc. supply to CC-Link to power supply to FE1
Discrete input status indicator LED: Green LED turns on with input ON
CC-Link COMMUNICATION
Transmission: CC-Link ver.1.10
Network cable: CC-Link cable designated by Mitsubishi Electric
Station type: Remote I/O device
Station number: 1 - 64 (rotary switch, default:00)
Baud rate setting: 156 kbps (default), 625 kbps, 2.5 Mbps,
5 Mbps, 10 Mbps (DIP switch)
Terminating resistor: Built-in (DIP Switch, default: disable)
Status indicator LEDs: Power, Run, Error, SD, RD
(For details, refer to the users manual.)
INPUT SPECIFICATIONS
Common: Negative common (PNP) per 16 points
Number of inputs: 16
Maximum inputs applicable at once: No limit (at 24 V DC)
Sensor excitation: 24 V DC ±10 %; ripple 5 %p-p max.,
≤ 2 A (including discrete input load charge); rated current
8 A
ON voltage / current: ≥ 17 V DC (X0 through XF to +24V) / ≥ 2.3 mA
OFF voltage / current: ≤ 5 V DC (X0 through XF to +24V) / ≤ 0.75 mA
Input current: ≤ 3.5 mA per point at 24 V DC
Input resistance: Approx. 7.2 kΩ
ON delay: ≤ 0.5 msec.
OFF delay: ≤ 0.5 msec.
INSTALLATION
Current consumption
•DC: Approx. 26 mA
(contact I/O load charge is not included)
Operating temperature: -10 to +55°C (14 to 131°F)
Storage temperature: -20 to +65°C (-4 to +149°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Surface or DIN rail (35 mm rail)
Weight: 120 g (0.26 lb)
PERFORMANCE
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @ 1 minute
(input or exc. supply to CC-Link to power supply to FE1)
STANDARDS & APPROVALS
EU conformity:
EMC Directive
EMI EN 61000-6-4
EMS EN 61000-6-2
RoHS Directive
--------------------
