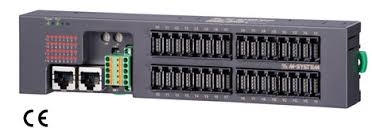

R7F4DH HI-SPEED LINK SYSTEM I/O MODULE

Liên hệ Còn hàng

ES-7799 Rev.9

R7F4DH

Remote I/O R7F4D Series

HI-SPEED LINK SYSTEM I/O MODULE



MODEL: R7F4DH-[1]-[2]-R[3]

ORDERING INFORMATION

• Code number: R7F4DH-[1]-[2]-R[3]
Specify a code from below for each of [1] through [3].
  (e.g. R7F4DH-1-DA16A-R/H/Q)
• Specify the specification for option code /Q
  (e.g. /C01)

[1] TERMINAL BLOCK

1: Tension clamp terminal block for power supply
   RJ-45 Modular jack for communication
   e-CON connector for I/O
2: Tension clamp terminal block for power supply
   RJ-45 Modular jack for communication
   MIL connector 1 for I/O
3: Tension clamp terminal block for power supply
   RJ-45 Modular jack for communication
   MIL connector 2 for I/O
4: Tension clamp terminal block for power supply
   RJ-45 Modular jack for communication
   Tension clamp terminal block for I/O

[2] I/O TYPE

DA16A: NPN discrete input, 16 points
DA16B: PNP discrete input, 16 points
DC16A: NPN transistor output, 16 points
DC16B: PNP transistor output, 16 points
DAC16A: PNP discrete input &
  NPN transistor output, 8 points each
DAC16B: NPN discrete input &
  PNP transistor output, 8 points each
DAC16C: NPN discrete input &
  NPN transistor output, 8 points each
DAC16D: PNP discrete input &
  PNP transistor output, 8 points each
DAC32A: PNP discrete input &
  NPN transistor output, 16 points each
 (Only terminal block codes 2, 3 selectable)
DAC32B: NPN discrete input &
  16 points PNP transistor output, 16 points each
 (Only terminal block codes 2, 3 selectable)
DAC32C: NPN discrete input &
16 points NPN transistor output, 16 points each
  (Only terminal block codes 2, 3 selectable)
DAC32D: PNP discrete input &
  PNP transistor output, 16 points each
  (Only terminal block codes 2, 3 selectable)

POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

[3] OPTIONS (multiple selections)

Communication Mode
blank: Full-duplex
/H: Half-duplex
Other Options
blank: none
/Q: Option other than the above (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating

FUNCTIONS & FEATURES

The R7F4DH interfaces discrete I/O signals with a PLC via HLS.
(HLS is the abbreviation for “Hi-speed Link System” of Step Technica Co., Ltd.)

GENERAL SPECIFICATIONS

• Common Specifications
Power input: 24 V DC ±10 %; ripple 10 %p-p max.; rated current 8 A
Sensor excitation: 24 V DC ±10 %; ripple 5 %p-p max.,
≤ 2 A (including discrete I/O load charge);
rated current 8 A
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @1 minute
(between isolated circuits)
Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: DIN rail or wall
Housing material: Flame-resistant resin (gray)
Status indicator: Power LED on with power supplied
Discrete I/O status indicator: Red LED on at contact on. (For R7F4DH-x-DAC32x, input or output display is selected with slide SW; factory setting: input display)
Communication Failure Detection: At communication error, the output status until normal data is received (Hold or OFF) can be set with the DIP SW. (only for output devices; factory setting: Hold)
■ Current Consumption & Weight
R7F4DH-x-DA16A: Approx. 25 mA/100 g (0.22 lb)
R7F4DH-x-DA16B: Approx. 25 mA/100 g (0.22 lb)
R7F4DH-x-DC16A: Approx. 50 mA/100 g (0.22 lb)
R7F4DH-x-DC16B: Approx. 50 mA/100 g (0.22 lb)
R7F4DH-x-DAC16A: Approx. 35 mA/100 g (0.22 lb)
R7F4DH-x-DAC16B: Approx. 35 mA/100 g (0.22 lb)
R7F4DH-x-DAC16C: Approx. 35 mA/100 g (0.22 lb)
R7F4DH-x-DAC16D: Approx. 35 mA/100 g (0.22 lb)
R7F4DH-x-DAC32A: Approx. 40 mA/120 g (0.27 lb)
R7F4DH-x-DAC32B: Approx. 40 mA/120 g (0.27 lb)
R7F4DH-x-DAC32C: Approx. 40 mA/120 g (0.27 lb)
R7F4DH-x-DAC32D: Approx. 40 mA/120 g (0.27 lb)
(Discrete I/O load charge is not included in the above-mentioned current consumption.)

HLS COMMUNICATION

Communication mode: Full-duplex or half-duplex
Network cable
Full-duplex communication:
ZHY262PS and ZHT262PS (Shinko Seisen Industry Co., Ltd.)
Half-duplex communication:
ZHY221PS (Shinko Seisen Industry Co., Ltd.)
Dual-shield cable:
ZHY262PBA (Shinko Seisen Industry Co., Ltd.)
Transmission distance:
12 Mbps: 100 meters (328 ft)
6 Mbps: 200 meters (656 ft)
3 Mbps: 300 meters (984 ft)
(Baud rate configurable with DIP SW; factory setting: 12 Mbps)
Terminating resistor: Built-in (Selected with the DIP SW; factory setting: disabled)
Status indicator: Run LED on in normal communication
Station address: Set with rotary switch
(Refer to the instruction manual for details.)

STANDARDS & APPROVALS

Refer to the manuals to comply with the standards.
EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive

EXTERNAL VIEW

■ TERMINAL BLOCK CODE 1 (e-CON)

■ TERMINAL BLOCK CODE 2, 3 (MIL)

■ TERMINAL BLOCK CODE 2,3 (MIL, 32 pin)

■ TERMINAL BLOCK CODE 4 (Tension Clamp)

CONNECTION DIAGRAMS

 I/O connection (Refer to each model terminal assignment)
• e-CON connector
Recommended cable connector
: 37104-( )-000FL (3M Company)
(The cable connector is not included in the package.
Specify wire size instead of ( ); refer to the specifications of the product.)
• MIL connector
Recommended cable connector
: XG4M-2030 (Omron)
(The cable connector is not included in the package.)
• Tension clamp terminal block
Cable connector: FMC1,5/16-ST-3,5 (Phoenix Contact)
(The cable connector is included in the package.)
Applicable wire size: 0.2 − 1.5 mm2; stripped length 10 mm
Recommended solderless terminal
- AI0,25−10YE 0.25 mm2 (Phoenix Contact)
- AI0,34−10TQ 0.34 mm2 (Phoenix Contact)
- AI0,5−10WH 0.5 mm2 (Phoenix Contact)
- AI0,75−10GY 0.75 mm2 (Phoenix Contact)
- A1−10 1.0 mm2 (Phoenix Contact)
- A1,5−10 1.5 mm2 (Phoenix Contact)

I/O DATA DESCRIPTIONS

EXTERNAL DIMENSIONS unit: mm [inch]

■ TERMINAL BLOCK CODE 1 (e-CON)

■ TERMINAL BLOCK CODE 2, 3 (MIL)

■ TERMINAL BLOCK CODE 2, 3 (MIL, 32 pin)

■ TERMINAL BLOCK CODE 4 (Tension Clamp)

MOUNTING REQUIREMENTS unit: mm [inch]

MG CO., LTD.
www.mgco.jp
