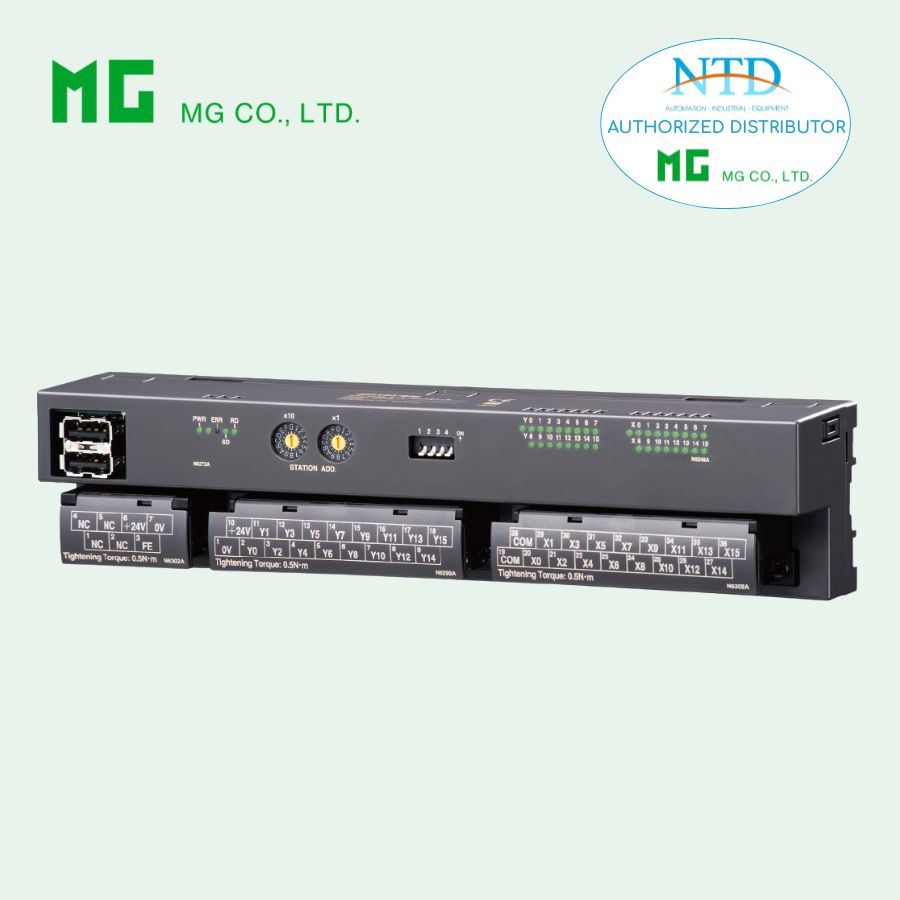

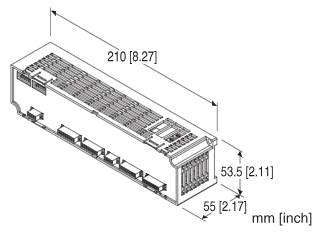

R7K4GC-DAC32C

Remote I/O R7K4G Series

CC-Link I/O MODULE

(NPN/PNP discrete input, NPN transistor output, 16 points each, tension clamp terminal)
Functions & Features
• Remote I/O module to input/output digital I/O signal to field bus (CC-Link)

MODEL: R7K4GC-DAC32C-C-R

• Code number: R7K4GC-DAC32C-C-R


I/O TYPE

DAC32C: NPN/PNP discrete input &
  NPN transistor output, 16 points each


TERMINAL BLOCK

C: Tension clamp terminal for power
    Tension clamp terminal for communication
    Tension clamp terminal for I/O


POWER INPUT

DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)


• CSP+ file
The CSP+ file are downloadable at our web site.
CSP+ file is also downloadable at CC-Link Partner Association's web site.


Connection: Tension clamp terminal
Housing material: Flame-resistant resin (gray)
Isolation: Input or output or exc. supply to CC-Link to power supply to FE1
Discrete I/O status indicator LED: Green LED turns on with I/O ON


Transmission: CC-Link Ver.1.10
Network cable: CC-Link cable designated by Mitsubishi Electric
Station Type: Remote I/O device
Data allocation: 1
Station number: 1 - 64 (rotary switch, default:00)
Baud rate setting: 156 kbps (default), 625 kbps, 2.5 Mbps,
5 Mbps, 10 Mbps (DIP switch)
Terminating resistor: Built-in (DIP Switch, default: disable)
Status indicator LEDs: PWR, RUN, ERR, SD, RD
（For details, refer to the users manual.）


Common: Positive or negative common (NPN/PNP) per 16 points
Number of inputs: 16
Maximum inputs applicable at once: No limit (at 24 V DC)
Rated input voltage: 24 V DC ±10 %; ripple 5 %p-p max.
ON voltage / current: ≥ 15 V DC (input to COM) / ≥ 3.5 mA
OFF voltage / current: ≤ 5 V DC (input to COM) / ≤ 1 mA
Input current: ≤ 5.5 mA per point (at 24 V DC)
Input resistance: Approx. 4.4 kΩ
ON delay: ≤ 0.2 msec.
OFF delay: ≤ 0.5 msec.


Common: Negative common (NPN) per 16 points
Number of output: 16 points
Maximum outputs applicable at once: No limit (at 24 V DC)
Rated load voltage: 24 V DC ±10 %, ripple 5 %p-p max.
Rated output current: 0.1 A per point, 1.6 A per common
Residual voltage: ≤ 1.2 V
Leakage current: ≤ 0.1 mA
ON delay: ≤ 0.2 msec.
OFF delay: ≤ 0.5 msec.
Overload current protection function: Limits the current value when overcurrent is detected
Overheat protection function: Turns OFF the outputs when overheat is detected
(When driving an inductive load, connect a diode in parallel with the load.)


Current consumption
•DC at 24 V DC: ≤ 55 mA
Operating temperature: -10 to +55°C (14 to 131°F)
Storage temperature: -20 to +65°C (-4 to +149°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Surface or DIN rail (35 mm rail)
Weight: 150 g (0.33 lb)


Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @ 1 minute
(input or output or exc. supply to CC-Link to power supply to FE1)


EU conformity:
EMC Directive
  EMI EN 61000-6-4
  EMS EN 61000-6-2
RoHS Directive

--------------------
