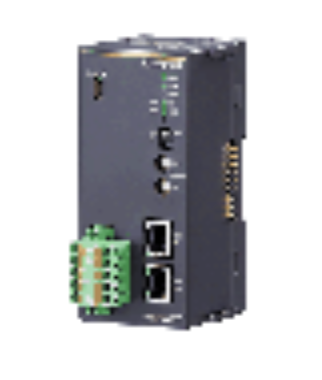

POWER/NETWORK MODULE R80NEIP1

Liên hệ Còn hàng

Thông tin sản phẩm

R80NEIP1

Remote I/O R80 Series

POWER/NETWORK MODULE

(EtherNet/IP)
Functions & Features
• Interchanges analog or discrete I/O signals with the filedbus (EtherNet/IP)
• Space-saving

MODEL: R80NEIP1–R[1]

ORDERING INFORMATION

• Code number: R80NEIP1-R[1]
Specify a code from below for [1].
(e.g. R80NEIP1-R/Q)
• Specify the specification for option code /Q
(e.g. /C01)

MODULE TYPE

NEIP1: EtherNet/IP

POWER INPUT

DC power
R: 24 V DC
(Operational voltage range: ±10 %; ripple 10 %p-p max.)

[1] OPTIONS

blank: none
/Q: With options (specify the specification)

SPECIFICATIONS OF OPTION: Q

COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating

RELATED PRODUCTS

• PC configurator software (model: R80CFG)
• EDS file
The EDS file and configurator software are downloadable at our web site.
For connecting to PC, use commercially available Mini-B type USB cable. (provided by user)

PACKAGE INCLUDES...

• Protective cover

GENERAL SPECIFICATIONS

Connection
• Power input or excitation supply: Tension clamp (Front Twin connection)
Stripped length: 10 mm
• EtherNet/IP: RJ-45 modular jack
• Internal bus or internal power or excitation supply: Via internal bus connector
Housing material: Flame-resistant resin (gray)
Max. number of I/O modules: 16
(Max. consumption current of I/O modules: 1.6 A)
Isolation: EtherNet/IP or FE1 to internal bus or internal power or power input to excitation supply
Status indicators: PWR, MS, NS, LNK1, LNK2
Configurator connection: USB Mini-B

EtherNet/IP COMMUNICATION

Communication Standard: IEEE 802.3u
Transmission: 10BASE-T, 100BASE-TX
Baud rate: 10/100 Mbps (Auto Negotiation function)
Protocol: EtherNet/IP
Connection type: Exclusive owner / Listen only / Input only
Max. number of socket connections: 3
Transmission media: 10BASE-T (STP, Category 5), 100BASE-TX (STP, Category 5e)
Network topology: Line, star and ring
Max. length of fieldbus segment: 100 meters
IP address: 192.168.0.250 (factory setting);
Only host address in IP address is configurable via rotary switches, the other items via PC configurator software (model: R80CFG).
DLR supported
Port No.: 2222, 44818
I/O data size: 134 Byte / 70 Byte
Status indicator LEDs: MS, NS (Refer to the instruction manual for details)

INSTALLATION

Power consumption
•DC: Approx. 12 W 24 V DC (@ internal power max. current 1.6 A)
Internal power supply (power supply for I/O module):
• DC power supply: 5 V DC
• Current capacity: 1.6 A
Excitation supply output (excitation for I/O module)
• DC: 24 V DC ±10 %
• Operational current: 10 A
(From power and excitation supply connector, via connector for internal bus, supplied to each I/O module. Power output current consumption must be under operational current.)
Operating temperature: -10 to +55°C (14 to 131°F)
Storage temperature: -20 to +65°C (-4 to +149°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: DIN rail
Weight: 210 g (0.46 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 500 V AC @ 1 minute
(EthrtNet/IP or FE1 to internal bus or internal power or power input to excitation supply)
