Bộ Ghi Không Giấy

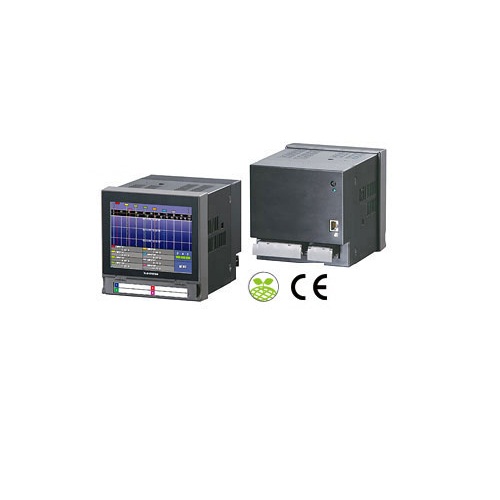

Paperless Recorder

Touch panel operation

Selectable number of pens to display

5.5-inch TFT color display with backlight

Selectable chart colors available
White or from blue to black (plain light, plain dark or gradation)

IP65 front cover

Compact Paperless Recorder

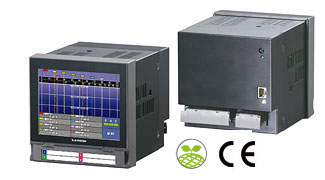

1/4 DIN size (96 x 96 mm) panel mount compact recorder

3.5 inch TFT color LCD display

Max. 8-point each of analog and discrete inputs are stored, displayed and alerted.

Paperless Recorder

Compact package

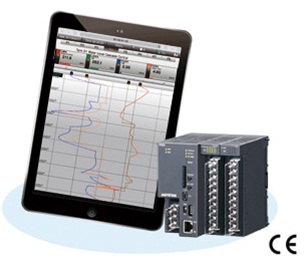

No need of dedicated application software other than a web browser

Flexible built-in I/O modules plus Modbus slave I/O

Trend View
(horizontal)

Trend View
(perpendicular)

Trend View
(large digital display)

Overview

Bargraph View
(horizontal)

Bargraph View
(perpendicular)

Alarm History View

Overview
(large digital display)

COMPACT PACKAGE

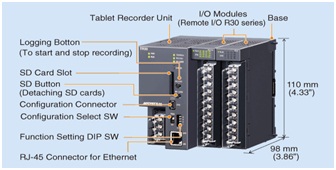

The compact logging module together with I/O modules can be mounted next to a PLC in a panel, at the same height and depth.

FLEXIBLE I/O

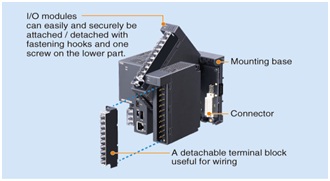

The R30 Series I/O modules are available for use with the TR30-G.

The following types of I/O modules are available.

• 16 Di or Do
• DC voltage/current input, 2 or 4 points
• Universal input, 2 or 4 points
• T/C or RTD input, 4 points
• Potentiometer input, 4 points
• AC current input, 4 points

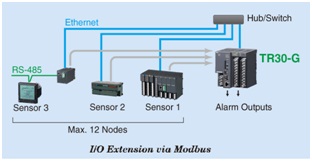

In addition, remote Modbus slaves can be connected up to 12 nodes.

At the maximum of 64 analog inputs (16-bit data), 64 discrete inputs, 64 discrete outputs, 32 pulse inputs (32-bit data) plus 32 function inputs (mathematical, logic, filter, etc.) are usable. At the maximum of 120 channels can be plotted on the charts and stored at the storing cycle of 1 minute. The fastest storing cycle is 5 milliseconds for 16 channels, 100 milliseconds for 32 channels.
