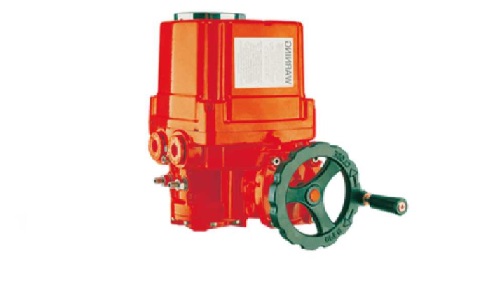

REH Electric Actuator
REH Electric Actuator
STANDARD SPECIFICATION
Enclosure: Weatherproof enclosure IP67, NEMA 4and 6
Power supply: 110/220V AC 1PH, 380 / 440V AC 3PH50 / 60Hz , 10 %
Control power supply: 110/220V AC 1PH, 50 / 60Hz , t l 096
Motor: Squirrel caged induction motor
Travel angle : 90+10 (0-100)
Stall protection/operating temp: Built-in thermal protection, open 150°C 5°C/close97C 15°C
Self locking Provided by means of worm gearing
Mechanical stopper :2x external adjustable screws
Space heater: 7-10W(110/220V AC) Anti-Condensation
Circuit entries: Two PF3/4" Tap
Ambient temperature: 20 % " ~ 70 ° C ( except option electronic bord )
|

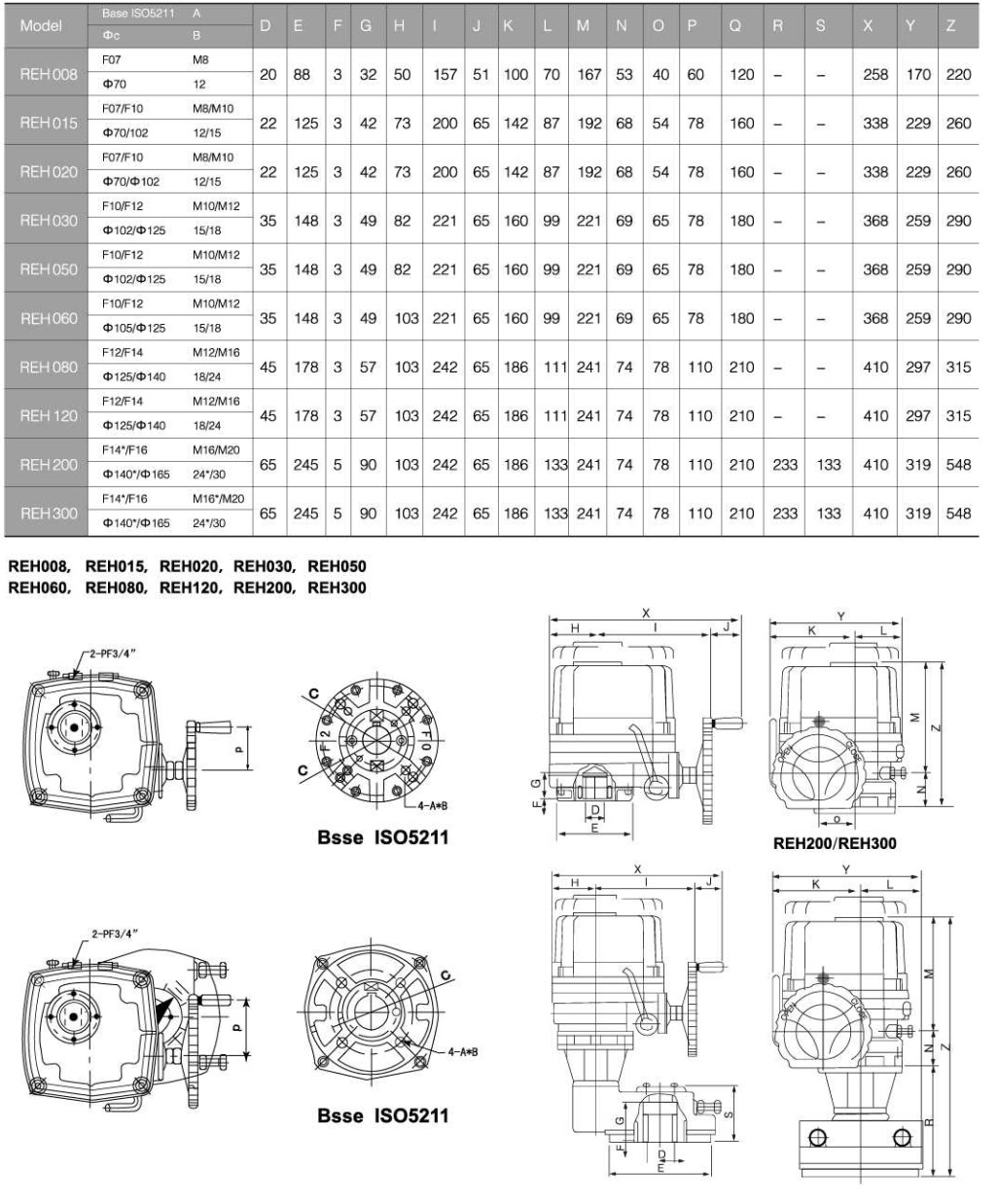

Type |
Maximum output torque |
Operating time 60/50 Hz |
Maximum bore size |
Motor class frame size |
Weight |
|
|
Kg-m |
90o |
mm |
W |
Kg |
|
REH-008 |
8 |
13/16 |
F20 |
15 |
7.4 |
|
REH-015 |
15 |
21/25 |
F22 |
40 |
16.6 |
|
REH-020 |
20 |
21/25 |
F22 |
40 |
16.6 |
|
REH-030 |
30 |
26/31 |
F35 |
40 |
22 |
|
REH-050 |
50 |
26/31 |
F35 |
90 |
23 |
|
REH-060 |
60 |
26/31 |
F35 |
90 |
23 |
|
REH-080 |
80 |
31/37 |
F45 |
180 |
29 |
|
REH-120 |
120 |
31/37 |
F45 |
180 |
29 |
|
REH-200 |
200 |
93/112 |
F65 |
180 |
75 |
|
REH-300 |
300 |
93/112 |
F65 |
180 |
75 |
