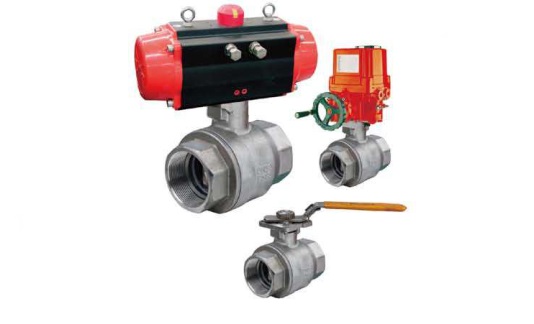

RP-200 Two-piecers Ball Valve
RP-200 Two-piecers Ball Valve

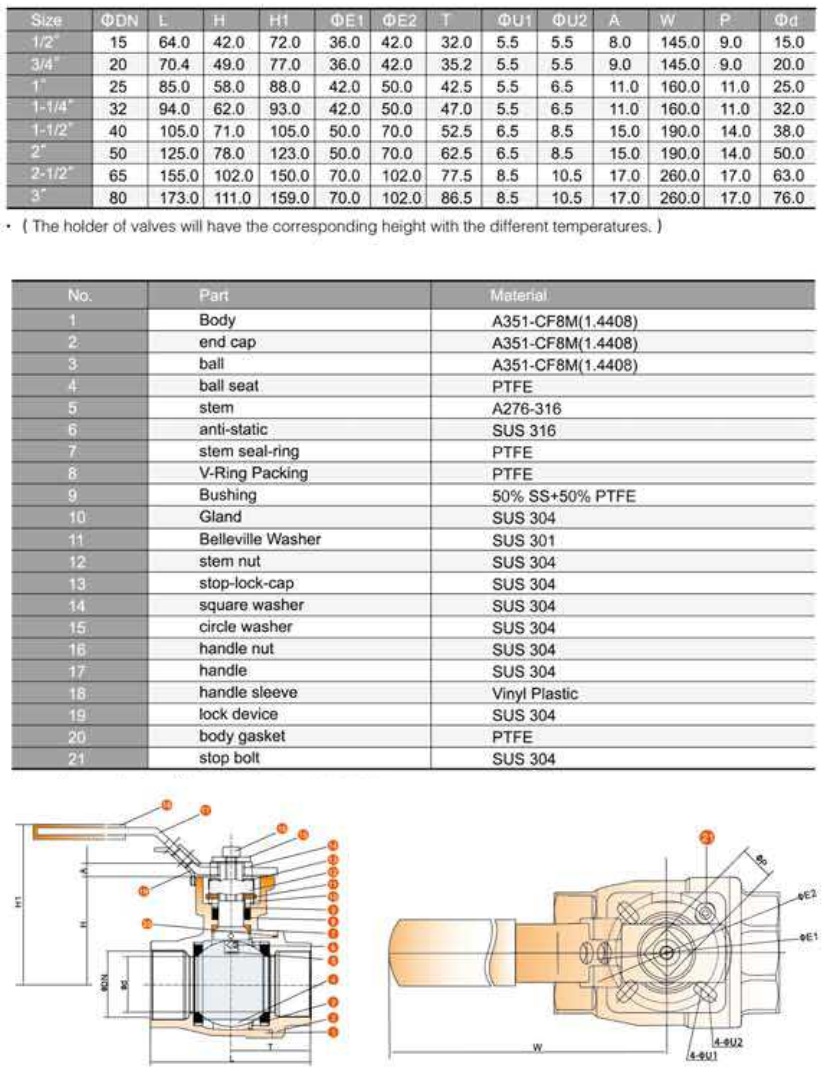

Valve Specifications .
Prevention of sticking-out of stem .
Anti-static device
Design of Inner Pressure-balance hole - Full Bore .
Multiple Connection Screw Optional
Design Standard: ASME B 16.34,MSS SP-110 .
Thickness: EN 12516-3
PRESSURE RATE: 1000WOG,PN64 2000WOG,PN130 .
Connection Screw: IS0228/1, DIN2999/259. BS21, ASME B1.20.1, JIS B0203 etc .
Testing: EN 12266, MSS SP-110
|
Order No. |
Size |
Body Material |
Plated Material |
Valve Seat |
Connection Style |
|
RP-210 |
¼-3” |
304 |
304 |
PTFE |
Intermal thread |
|
RP-211 |
¼-3” |
304 |
316 |
PTFE |
Intermal thread |
|
RP-212 |
¼-3” |
304 |
316L |
PTFE |
Intermal thread |
|
RP-220 |
¼-3” |
316 |
316 |
PTFE |
Intermal thread |
|
RP-221 |
¼-3” |
316 |
316L |
PTFE |
Intermal thread |
