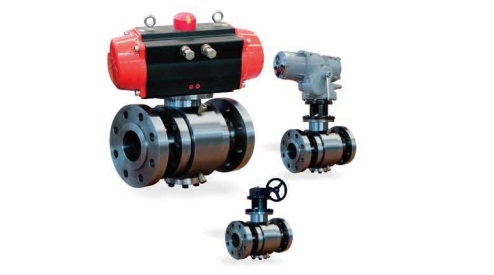

RP-500D Forged Ball Valve
RP-500D Forged Ball Valve
Valve Specific Information .
Size: 2"-64 .
Pressure: ANSI CLASS SOLB-2500LB .
Types of connection: flange and butt welding .
Actuators: manual operation, pneumatic, electric, electric-hydraulic linkage .
Design of valves is in accordance with: API 6D ASME B16.34 .
Length: ASME B16.10 e
Connection standard: ANSI B16.5, ANSI B16.25 .
Test and examination: API 6D API 598
Fireproof design: API 607/6FA
|
Order No. |
Size |
Body Material |
Plated Material |
Valve Seat |
Connection Style |
|
RP-510D |
2”-64” |
Forged steel |
Forged steel |
Forged steel |
Flanged |
|
RP-520D |
2”-64” |
Stainless steel |
Stainless steel |
Stainless steel |
Flanged |
|
RP-530D |
2”-64” |
Forged steel |
Forged steel |
Forged steel |
Water |
|
RP-540D |
2”-64” |
Stainless steel |
Stainless steel |
Stainless steel |
Water |
