![RP-500F Lined Ball Valve](http://bizweb.dktcdn.net/100/332/095/products/rp-500f.jpg?v=1557330419690)

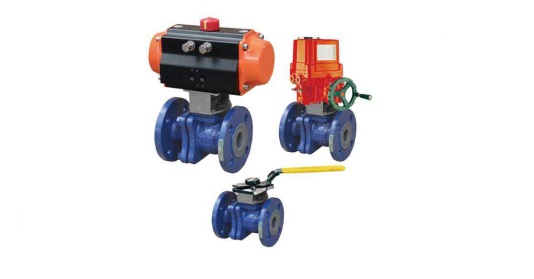

RP-500F Lined Ball Valve
RP-500F Lined Ball Valve
Valve Specific Information .
Size: 1/2" 12 (DN15 DN 300) .
Pressure: PN6-16 .
Face To Face: ASME B16.10, GB/T12221 e
Flange Standard: ASME B16.5. GB/T9113 -
Test: API598, GB/T13927 .
Special molding process .
Fire safety design -
Anti-static device structure .
Explosion-proof the stem structure .
Trim with pressure balance holes
Order No. |
Size |
Body Material |
Plated Material |
Valve Seat |
Connection Style |
RP-510F |
1/2”-12” |
WCB |
WCB+F46 |
F46, PTFE |
Flanged |
RP-520F |
1/2”-12” |
304 |
304+F46 |
F46, PTFE |
Flanged |
