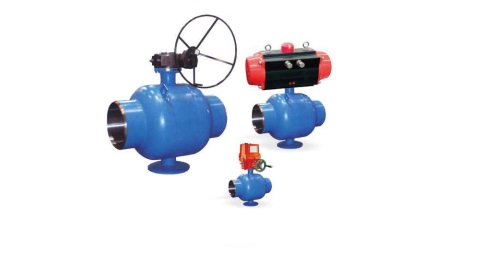

RP-500H Fully Welded Ball Valve

Liên hệ Còn hàng

RP-500H Fully Welded Ball Valve



Valve Specific Information .

Size: 2-64"

Pressure: ANSI CLASS 150LB-250OLB .

Types of connection: butt welding .

Actuators: manual operation, pneumatic, electric, electric-hydraulic linkage .

Design of valves is in accordance with: API 6D,ASME B16.34 .

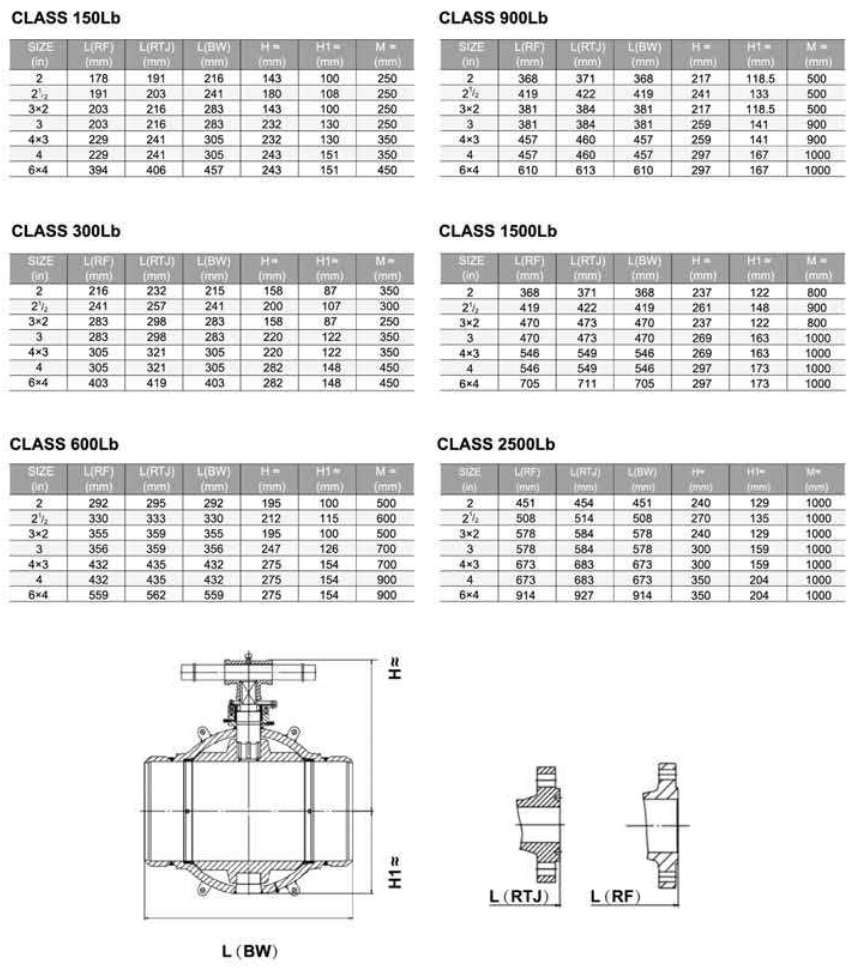

Length: ASME B16.10 .

Connection standard: ANSI B16.25 .

Test and examination: API 6D,API 598 .

Fireproof design: API 607/6FA



Order No.

Size

Body Material

Plated Material

Valve Seat

Connection Style

RP-510H

2”-64”

WCB

WCB

Alloy Steel

Welding

RP-520H

2”-64”

304

304

304

Welding
